Monitor Scantool Data

Monitor Scantool Data

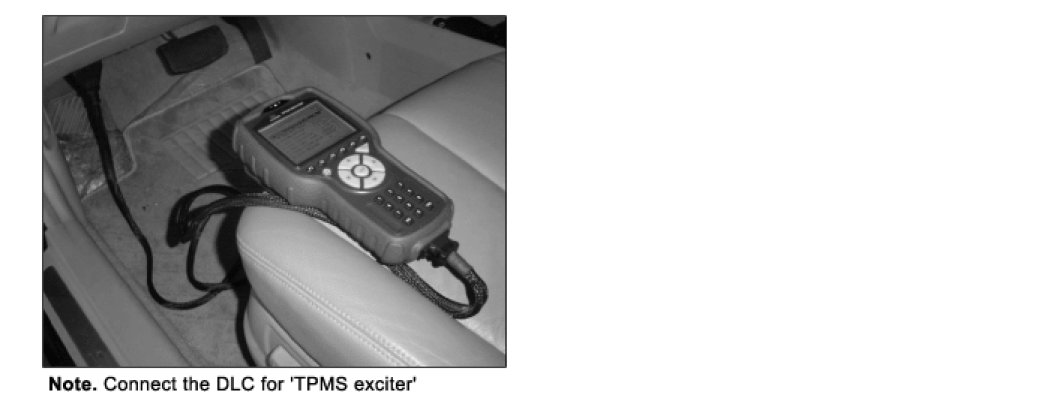

1. Connect 'TPMS exciter' or scantool to Data Link Connector (DLC).
2. Select "TPMS DIAGNOSIS" mode.
3. Select the "FULL" mode of "CURRENT DATA" function.

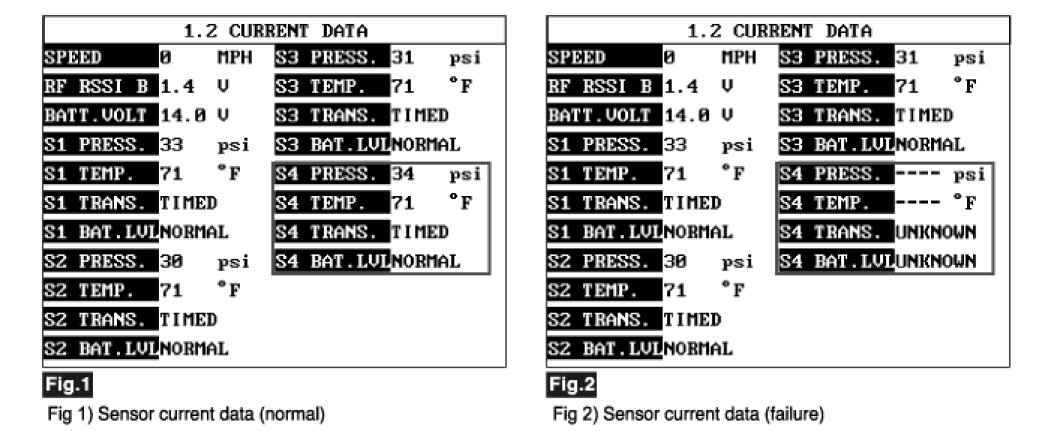

4. Monitor the parameter of SENSOR 4 on the 'TPMS exciter' or scantool after 20 minutes.








5. Is parameter normal?
YES
1) Fault is intermittent. It has been repaired and TPMS receiver module memory is not cleared yet.
2) Go to "Verification of vehicle Repair" procedure.
NO
1) Go to "Component Inspection" procedure.
