General Information

Component Location





General Description

The wheel speed sensor is the essential component the ABS ECU uses to calculate vehicle speed and to determine whether wheel lock occurs. For example, rear wheel speed signal is used as a reference value, for vehicle speed, in front wheel drive vehicles, and if a difference between front and rear wheel speed occurs, then ABS control is performed. The wheel speed sensor generates sinewave signals, based on magnetic field made by a permanent magnet in the speed sensor, when the tone wheel rotates. The frequency and AC voltage changes in proportion to the wheel speed, and the HECU determines the speed by calculating the frequency of the signal.






DTC Description

The ABS ECU monitors the wheel speed sensor signal continuously.The monitoring method for this sensor is to check the (-) side signal of the sensor circuit when a reference voltage is applied to (+) side of the sensor circuit. This code is set if an abnormal speed change ratio is detected while the vehicle speed is more than 2 Km/h. Warning lamp is turned OFF if the detected fault is not more than when the IG KEY is turned to ON again, and wheel speeds are more than 10 Km/h.

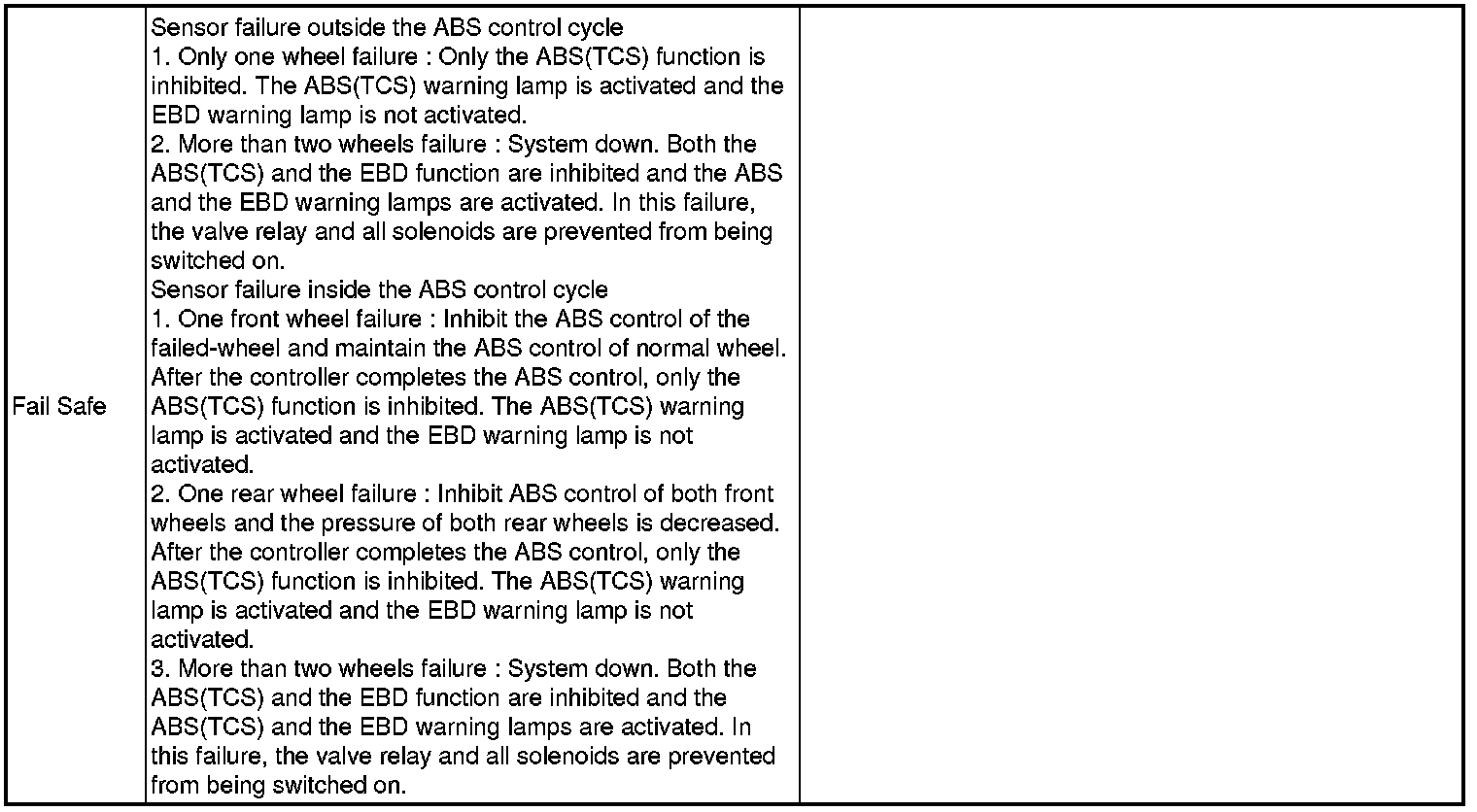

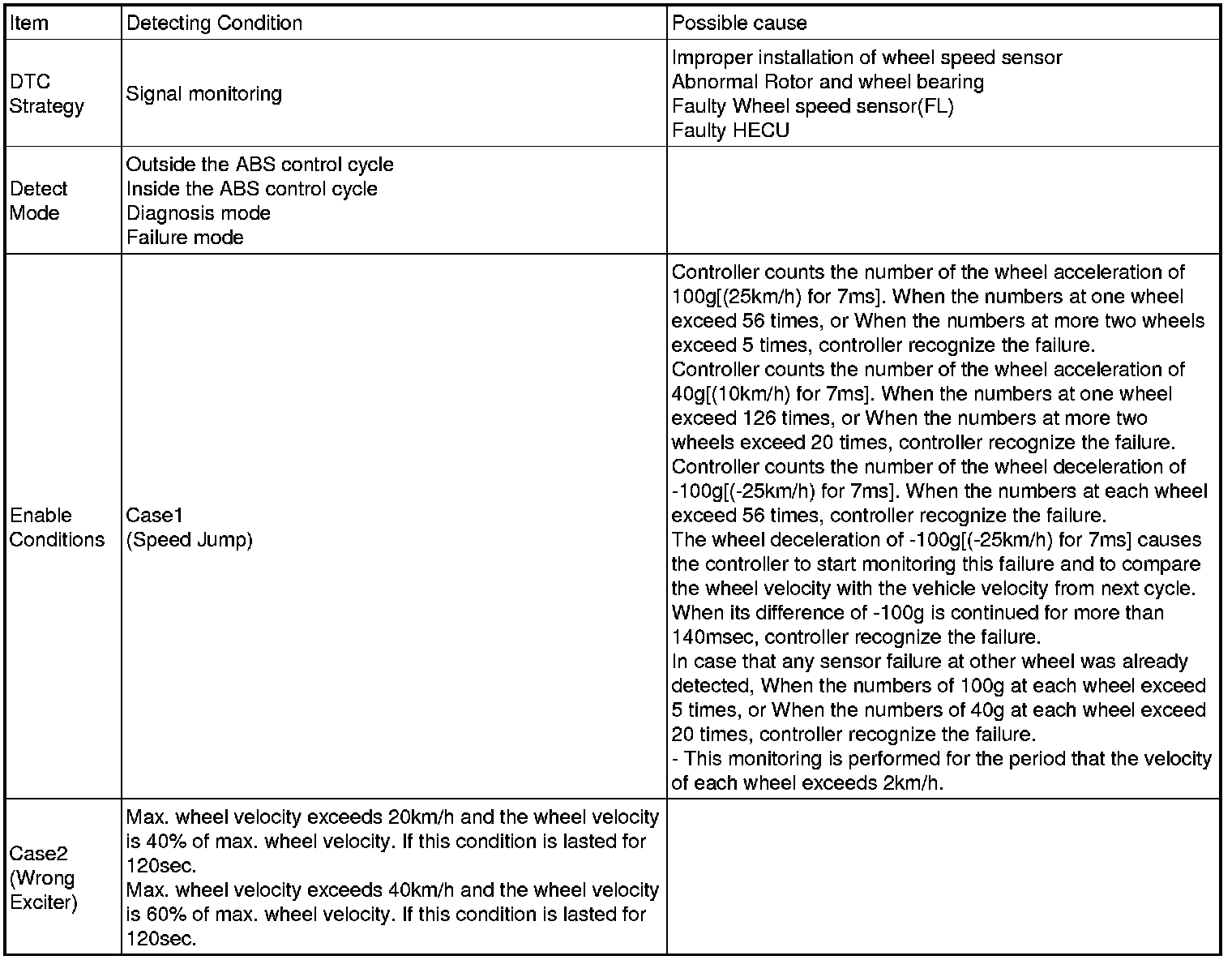

DTC Detecting Condition









Specification





Schematic Diagram





Signal Waveform
