Component Inspection

Component Inspection

1. Turn ON 'TPMS exciter'.
2. Select "TIRE SNSR CONFIG (EXCITER)" mode.

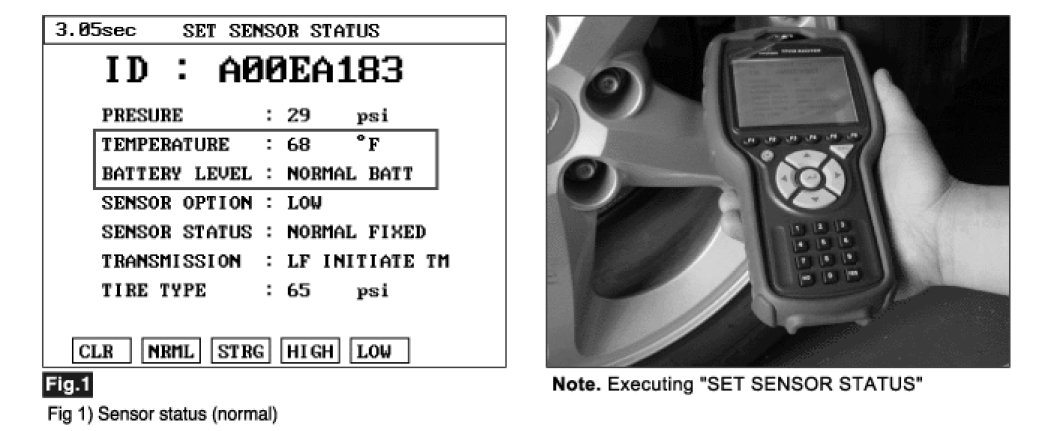

3. Execute "SET SENSOR STATUS" of each wheel.
A. Specification : 'Sensor battery value' is 'Normal' and 'Sensor Temp.' is more than -4 °F (-20 °C).




4. Is any sensor data outside specification?
YES
1) Fault is intermittent. It might have been caused by low temperature.
2) Go to "Verification of vehicle Repair" procedure.
NO
1) Replace TPMS sensor if necessary and register sensor ID with 'TPMS exciter'.
2) Go to "Verification of Vehicle Repair" procedure.
