Component Inspection

Component Inspection

1. Turn ON 'TPMS exciter'.
2. Select "TIRE SNSR CONFIG (EXCITER)" mode.

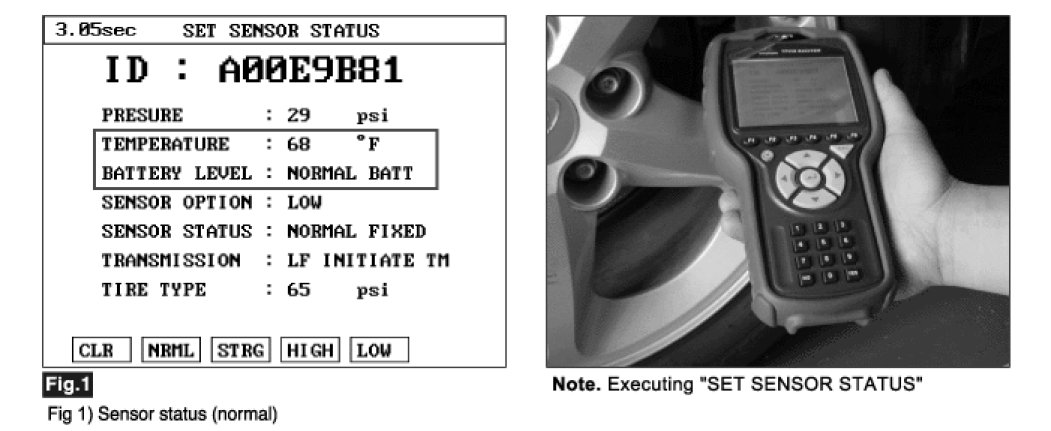

3. Execute "SET SENSOR STATUS" of each wheel.
A. Specification : 'Sensor battery value' is 'Normal' and 'Sensor Temp.' is more than -4 °F (-20 °C).




4. Is any sensor data outside specification?
YES
1) Check wheel/tire where abnormal sensor data was detected.
2) Check for sensor if unable to retrieve data with 'TPMS exciter'.
3) Repair or replace if necessary and go to "Verification of Vehicle Repair" procedure.
NO
1) Replace TPMS sensor if necessary and register sensor ID with 'TPMS exciter'.
2) Go to "Verification of Vehicle Repair" procedure.
