A L L Diagnostic Trouble Codes ( DTC )
>>
Testing and Inspection
>>
B Code Charts
>>
B2503
B2503
INSPECTION PROCEDURE FOR DIAGNOSTIC TROUBLE CODES

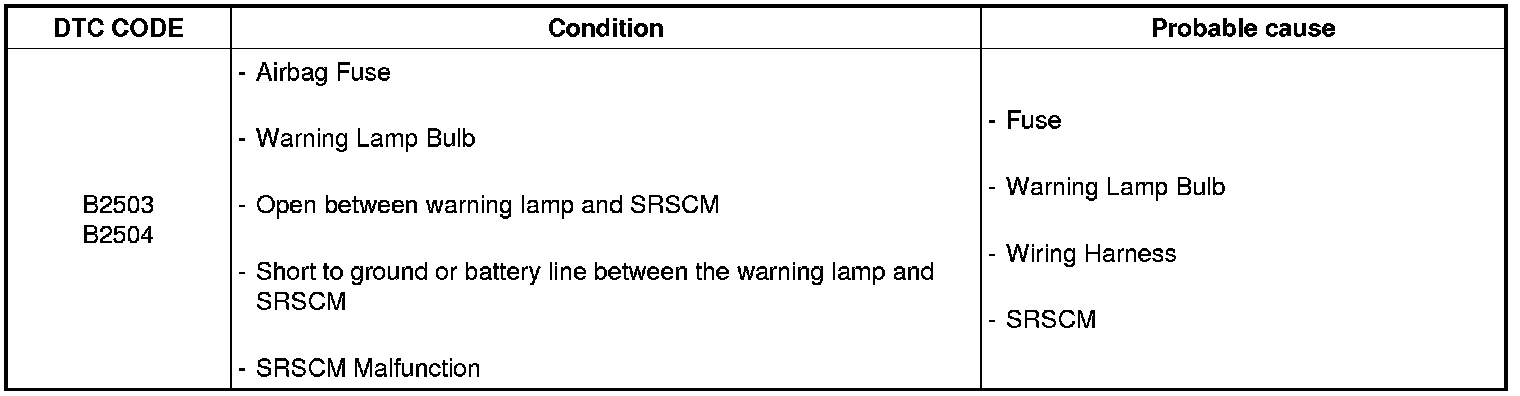

DTC DETECTING CONDITION

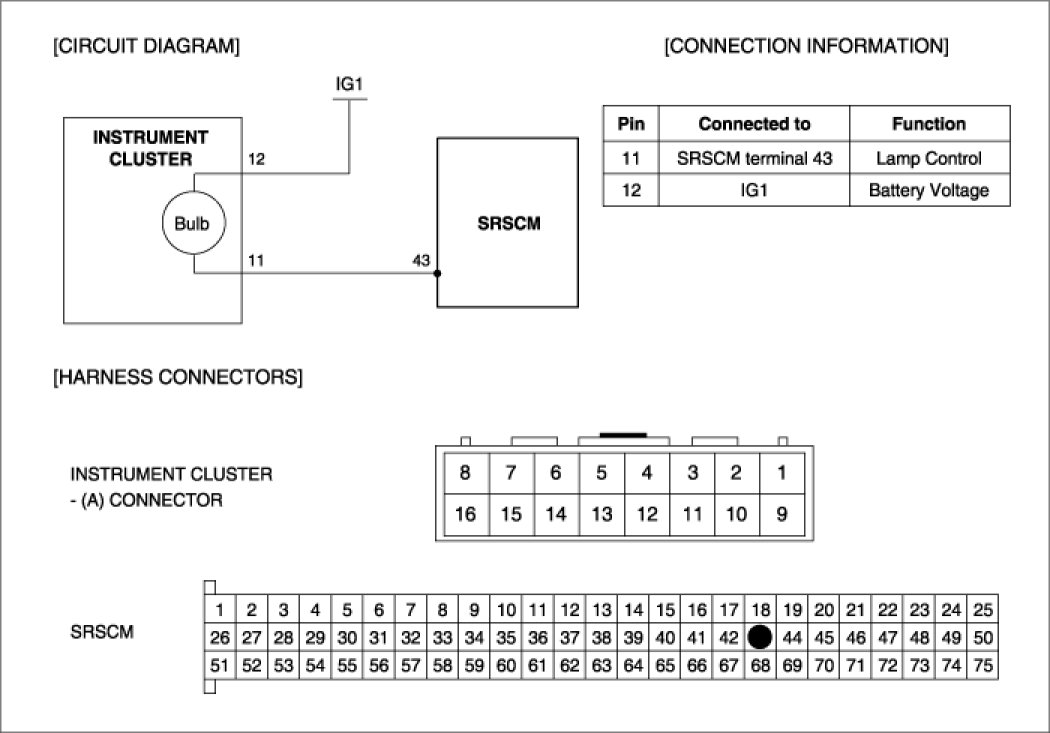

SCHEMATIC DIAGRAM

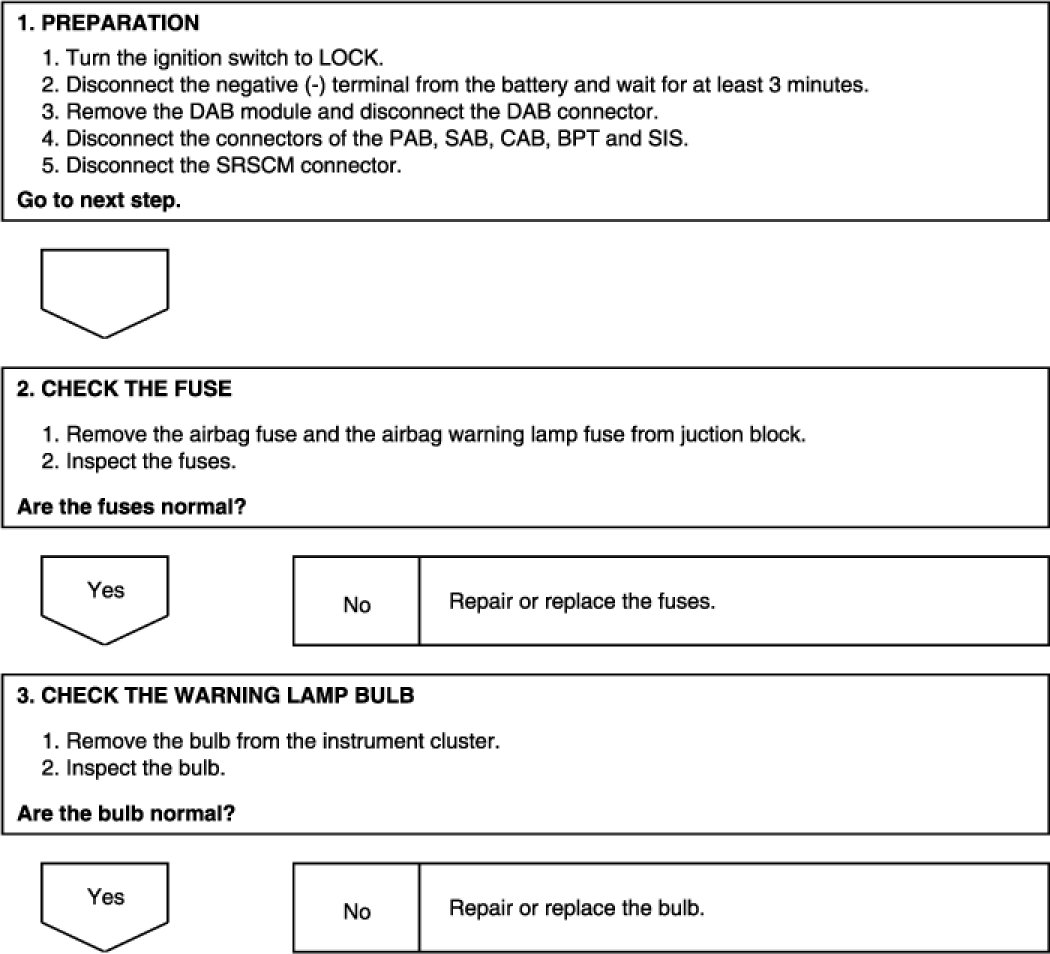

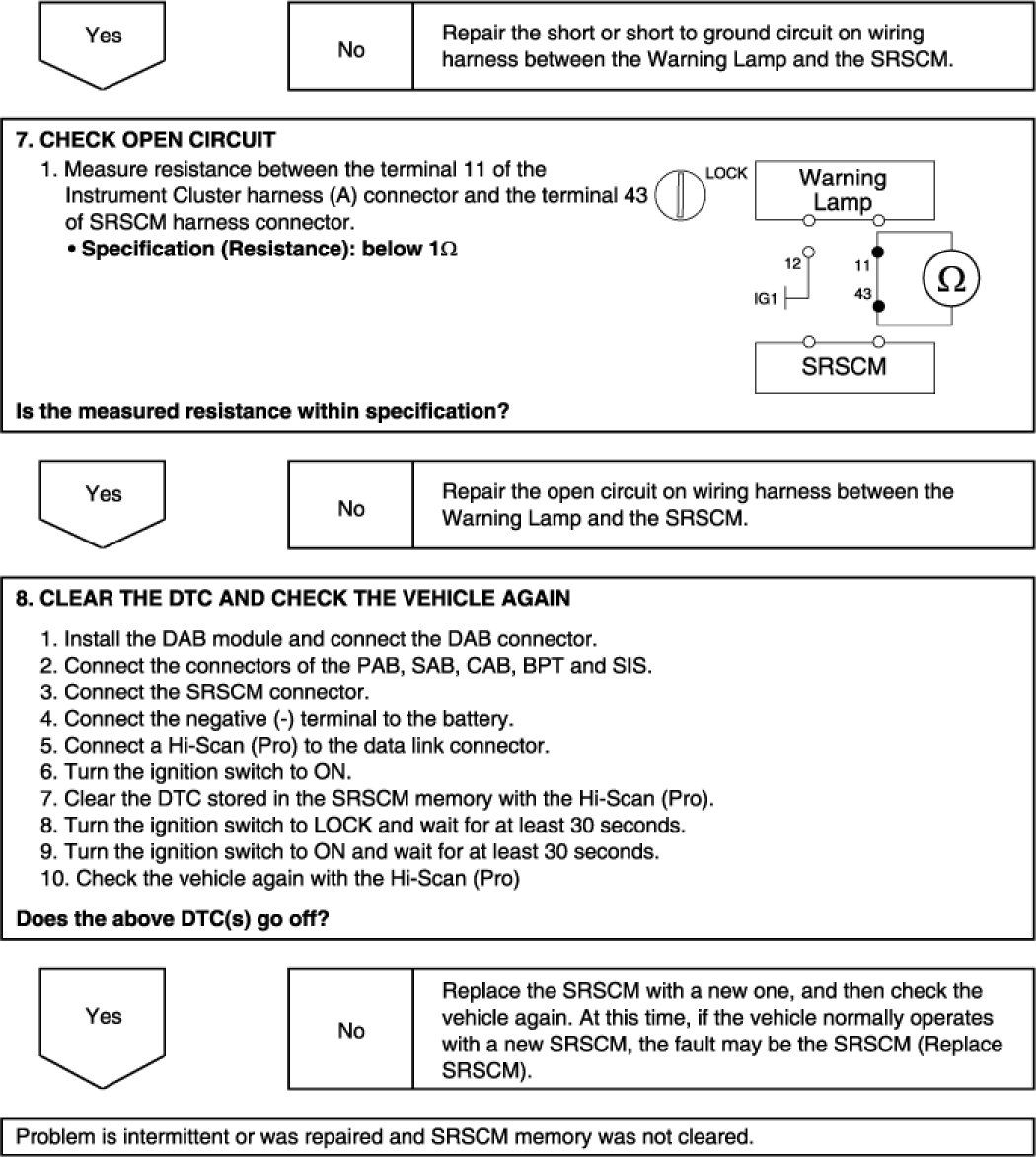

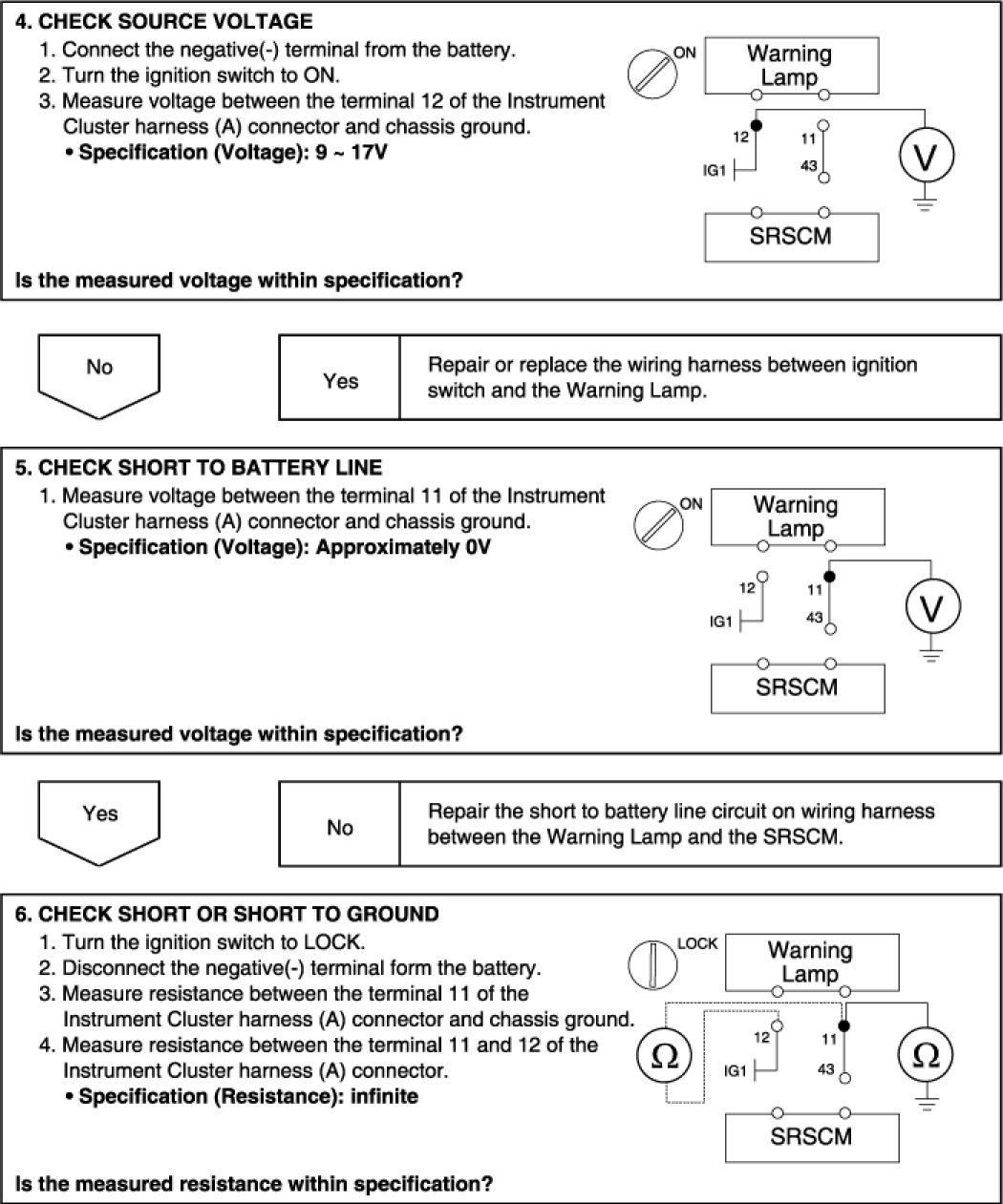

INSPECTION PROCEDURE
