General Information

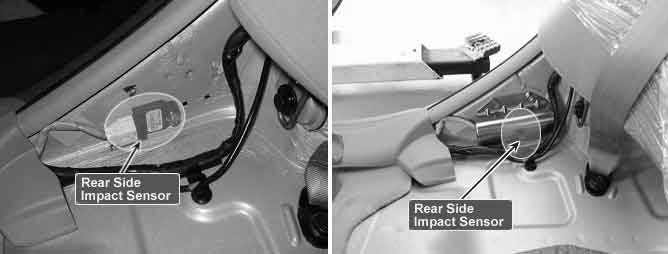

Component Location





General Description

The rear-side Impact sensor (rear-SIS) assy circuit consists of the diagnosis circuit and lateral deceleration sensor,etc. It receive signals from the lateral deceleration sensor,judges whether or not the SRS must be activated, and detects diagnosis system malfunction.

DTC Description

DTC B1413 is recorded when occurrence of a communication error between rear-side Impact Sensor and SRSCM due to malfunction in the system.

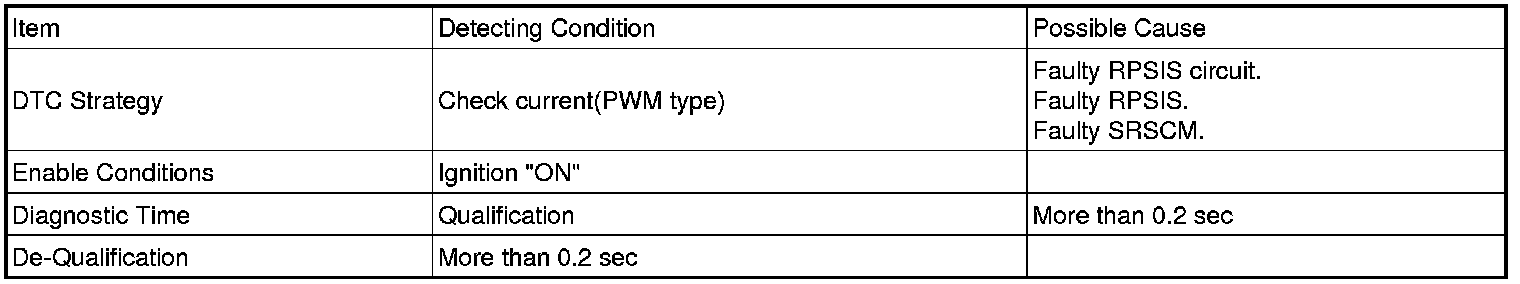

DTC Detecting Condition





Schematic Diagram
