General Information

Component Location





General Description

Passenger Air bag module (hereinafter referred to PAB) located at passenger side crush pad protects passenger by reducing impact of collision. PAB is consist of air bag, pat cover and inflator. Air bag reduces impact of collision by filled up gas. Inflator keeps gas and uses it to deploy air bag on collision.

CAUTION:
Never measure resistance of PAB directly, Current of measuring device may cause unexpected air bag deploy.

DTC Description

The SRSCM sets DTC B1352 if the measured resistance value of PAB circuit is more than the threshold value.
*In this case, SRSCM checks if there's any fault in circuit by sending current for a while

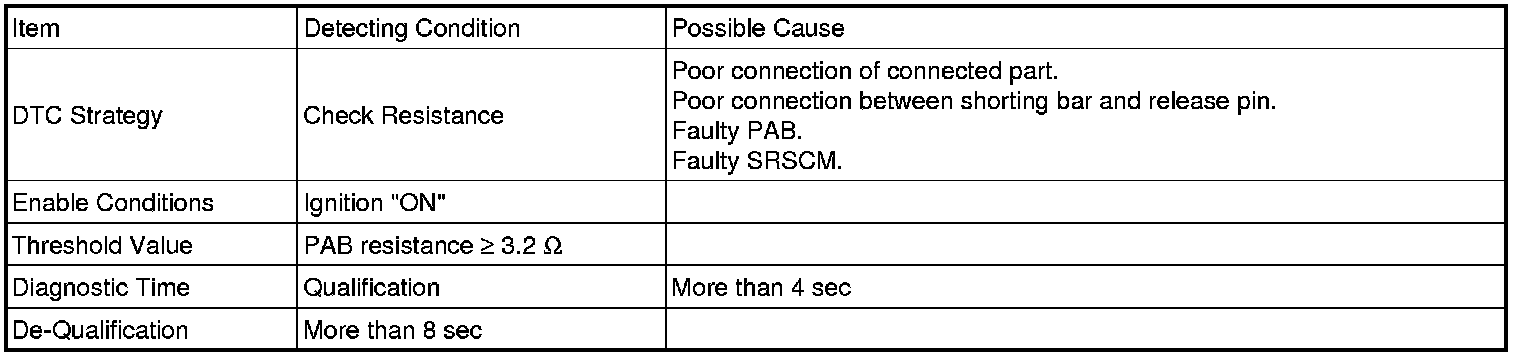

DTC Detecting Condition





Specification





Schematic Diagram
