Repair Procedures (A5GF1)

REMOVAL

1. Remove the console under cover (A).

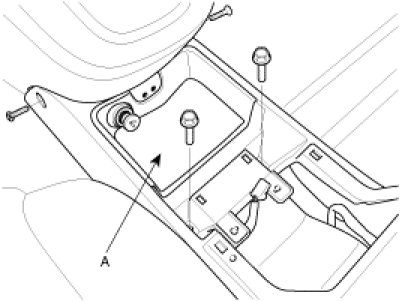

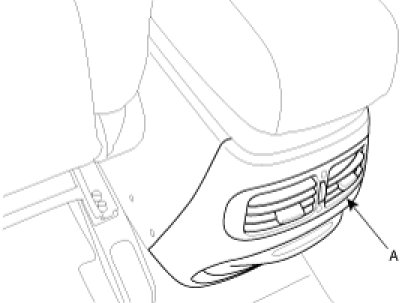

2. Remove the console rear cover (A) and console assembly mounting bolts (B).

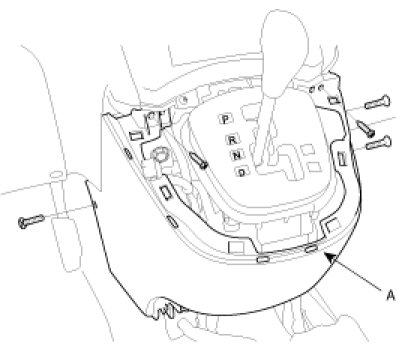

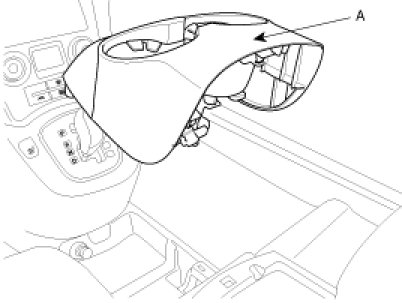

3. Remove the console assembly (A).




4. Remove the console upper cover (A).

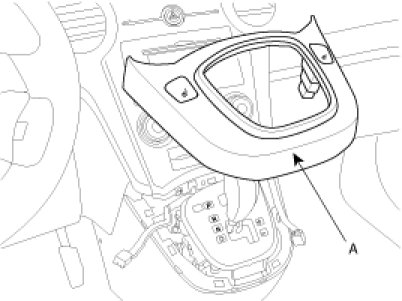

5. Remove the front console (A).

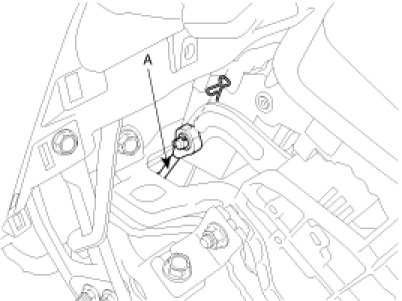

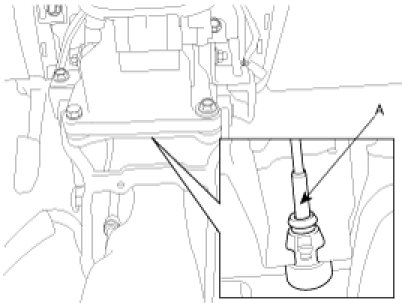

6. Disconnect the control cable (A).

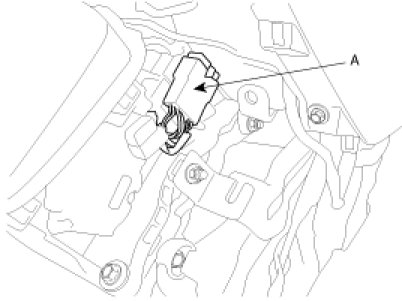

7. Disconnect the sports mode connector (A).

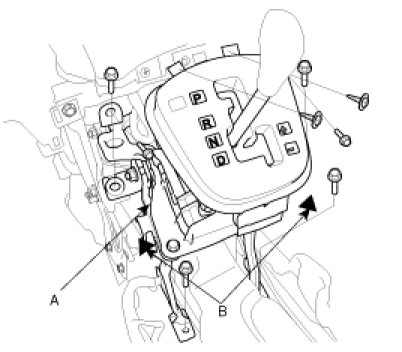

8. Remove the shift lever assembly (A).




9. Remove the retainer and nuts.

NOTE:
In case, remove the crush pad and cowl cross bar.

10. Remove the control cable assembly from the transaxle.
11. Remove the control cable.

INSTALLATION

1. Install the control cable assembly from the transaxle.
2. Install the retainer and nuts.

TORQUE : 12-15Nm(1.2 - 1.5 kgf.m, 8.7-10.8lb-ft)


NOTE:
In case, install the crush pad and cowl cross bar.

3. Install the shift lever assembly (A).

TORQUE :
[A] 2-3Nm( 0.2 - 0.3 kgf.m, 1.4-2.2 lb-ft)
[B] 9-14Nm( 0.9 - 1.4 kgf.m, 6.5-10.1 lb-ft)





4. Install the sports mode connector (A).




5. Install the control cable (A).








6. Install the front console (A).




7. Install the console upper cover (A).




8. Install the console assembly (A).




9. Install the console assembly mounting bolts (B) and console rear cover (A).








10. Install the console under cover (A).
