Accelerator Pedal Position Sensor
>>
Specifications
>>
Fuel System
Fuel System
Specifications
Sensors

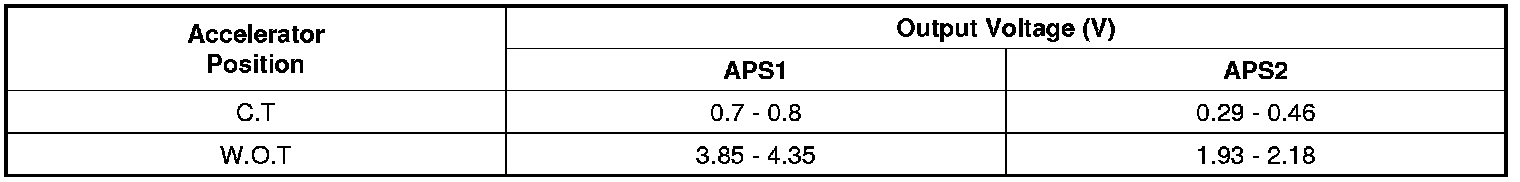

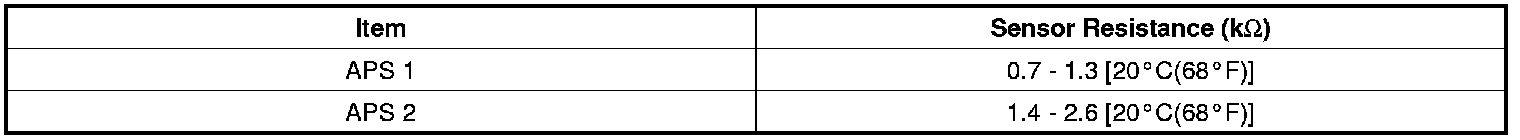

Accelerator Position Sensor (APS)
- Type: Variable resistor type
- Specification
