Hood: Service and Repair

REPLACEMENT

NOTE:
- When removing and installing the hood, an assistant is necessary.
- Take care not to damage the hood and body.
- When removing the clips, use a clip remover.

1. Disconnect the windshield washer nozzle connecting tube.

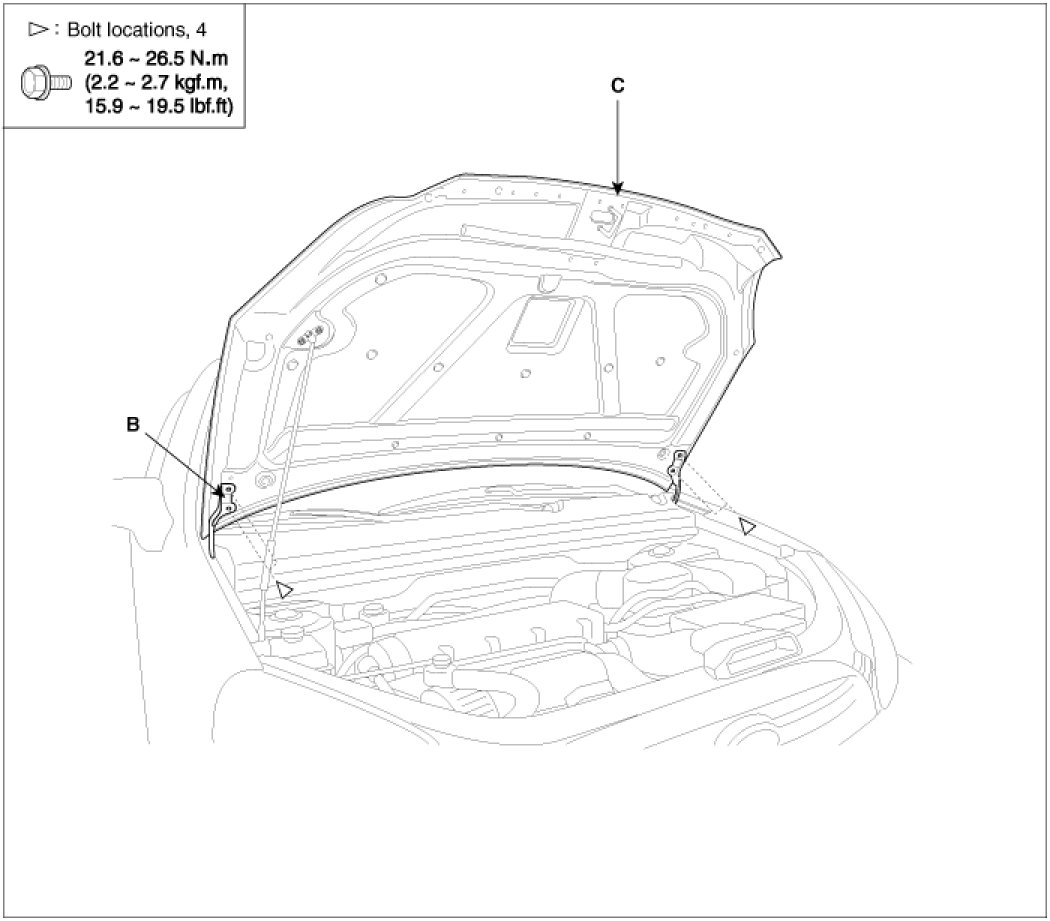

2. After loosening the hood hinge (B) mounting bolts,then remove the hood (C).
3. Installation is the reverse of removal.

NOTE:
- Make sure the hood opens properly and locks securely.
- Adjust the hood alignment.
