General Information

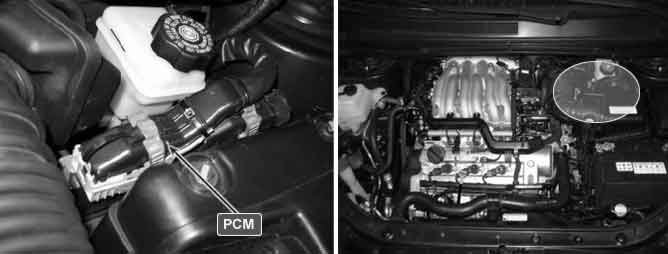

Component Location





General Description

The PCM continues to calculate sensor data after the ignition is turned off. This calculation process is accomplished through the use of an internal PCM timer.

DTC Description

If an abnormal timer condition is detected, PCM sets P2610. And then MIL (Malfunction Indication Lamp) turns on when the malfunction lasts till consecutive 2 driving cycle.

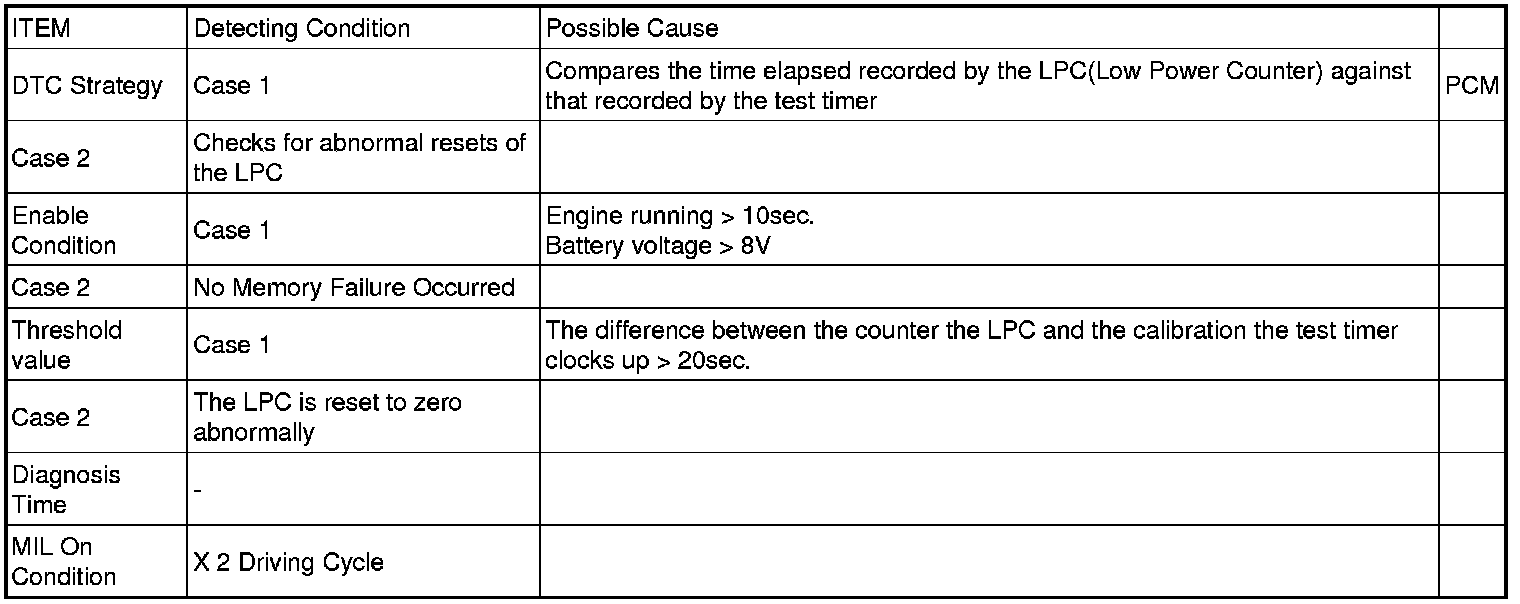

DTC Detecting Condition
