W/Harness Inspection

Terminal and Connector Inspection

1. Many malfunctions in the electrical system are caused by poor harness and terminal condition. Faults can also be caused by interference from other electrical systems, and mechanical or chemical damage.
2. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage.
3. Has a problem been found ?
YES
- Repair or replace if necessary and go to "Verification of Vehicle Repair" procedure
NO
- Go to "Power Circuit Inspection" procedure.

Power Supply Circuit Inspection

1. IG "OFF"
2. Disconnect MAPS connector
3. IG "ON"

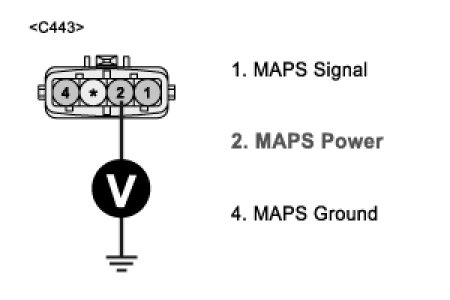

4. Measure the voltage between terminal 2 of MAPS harness connector and ground.
A. Specification : Approx. 5V




5. Is the measured voltage within specification ?
YES
- Go to "Ground Circuit Inspection" procedure.
NO
- If the voltage is over 5.1V, check short to battery in harness.
- Repair or replace as necessary and then, go to "Verification of Vehicle Repair" procedure.

Ground Circuit inspection

1. IG "OFF".
2. Disconnect MAPS connector.
3. IG "ON" & ENG "OFF"

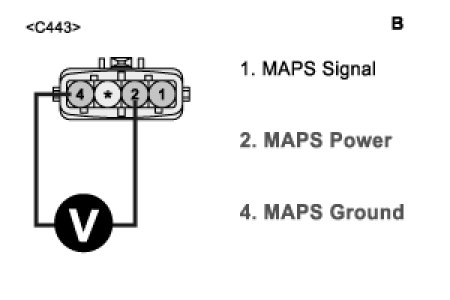

4. Measure the voltage between terminal 2 of MAPS harness connector and chassis ground.
5. Measure the voltage between terminal 2 and 4 of MAPS harness connector.
A. Specification : "A" - "B" = : Approx. below 200 mV








6. Is the measured voltage within specification ?
YES
- Go to "Signal Circuit Inspection" procedure.
NO
- Repair contact resistance or open in harness and then go to "Verification of Vehicle Repair" procedure.

Signal Circuit Inspection

1. IG "OFF"
2. Disconnect MAPS and PCM connector.

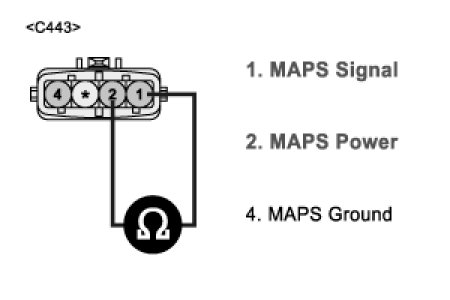

3. Measure resistance between terminal 1 and 2 of MAPS harness connector.
A. Specification : Infinite Ohms




4. Is the measured resistance within specification ?
YES
- Go to "Component Inspection" procedure.
NO
- Repair contact resistance or open in harness and then go to "Verification of Vehicle Repair" procedure.
