1. Check Alternator circuit
(1) IG "OFF".
(2) Disconnect generator connector.
(3) IG "ON" and ENG "OFF"

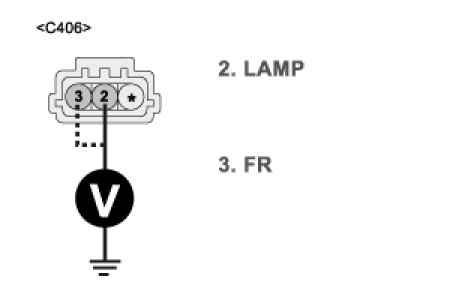

(4) Measure the voltage between terminal 2 of generator and chassis ground.
(5) Measure the voltage between terminal 3 of generator and chassis ground.
A. Specification : B+




(6) Is the measured voltage within specification?
YES
- Go to "Component inspection" procedure.
NO
- Repair short in Sensing circuit or MIL circuit and go to "Verification of Vehicle Repair" procedure.
