Component Inspection

Component Inspection

1. Check CCV
(1) Ignition "OFF"

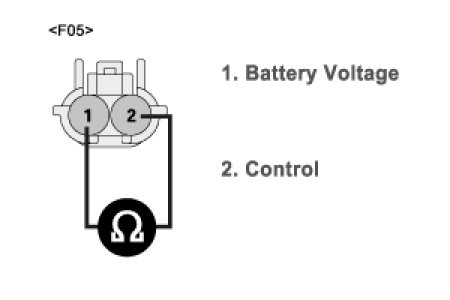

(2) Measure resistance between terminals "1" and "2" of the CCV connector.
A. Specification : Approx. 23.0 - 26.0 Ohms (20°C (68°F))

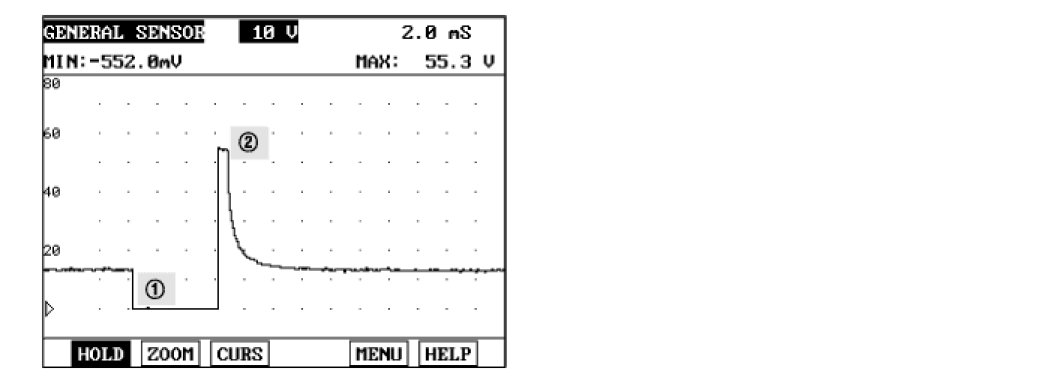

(3) Monitor the CCV signal waveform and verify that the ground voltage is less than approx. 0.3V (1) and the surge voltage (2) is between 40 V and 60 V.




(4) Is the CCV normal?
YES
- Substitute with a known - good PCM and check for proper operation.
- If the problem is corrected, replace PCM and go to "Verification of Vehicle Repair" procedure.
NO
- Substitute with a known - good CCV and check for proper operation.
- If the problem is corrected, replace CCV and go to "Verification of Vehicle Repair" procedure.

CAUTION:
There is a memory reset function on scantool that can erase optional components automatically detected and memorized by PCM.Before or after testing PCM on the vehicle, use this function to reuse the PCM.
