Component Inspection

Component Inspection

1. Check PCSV
(1) IG "OFF" and disconnect PCSV connector.

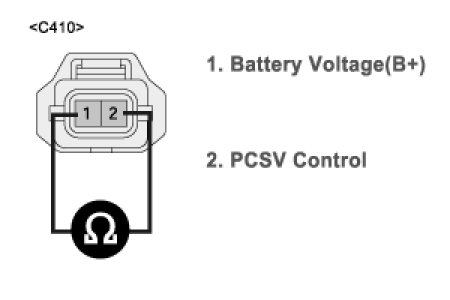

(2) Measure resistance between terminals 1 and 2 of PCSV connector. (Component side)
A. Specification :









(3) Is the measured resistance within specification?
YES
- Substitute with a known - good PCM and check for proper operation.
- If the problem is corrected, replace PCM and go to "Verification of Vehicle Repair" procedure.
NO
- Substitute with a known - good PCSV and check for proper operation.
- If the problem is corrected, replace PCSV and go to "Verification of Vehicle Repair" procedure.

CAUTION:
There is a memory reset function on scantool that can erase optional components automatically detected and memorized by PCM.Before or after testing PCM on the vehicle, use this function to reuse the PCM.
