Component Inspection

Component Inspection

1. Check resistance of OTS
(1) IG "ON" & ENG "OFF"
(2) Monitor Oil Temperature parameter on the scantool
(3) IG "OFF" & ENG "OFF"
(4) Disconnect OTS connector.

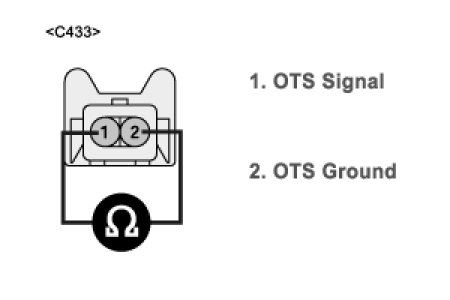

(5) Measure resistance between terminal 1 and 2 of OTS connector (Component Side)

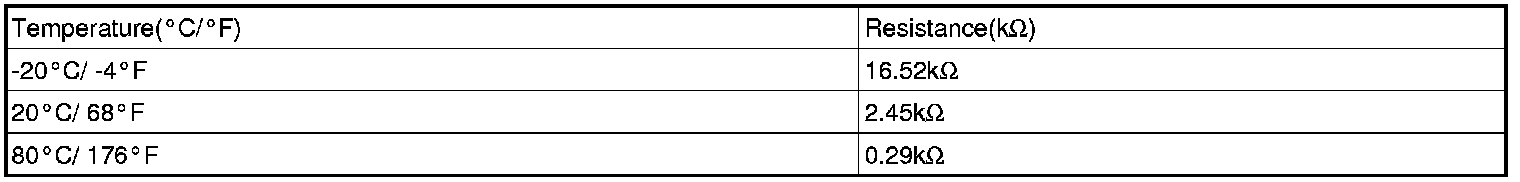

A. Specification :









(6) Is the measured resistance within specification ?
YES
- Go to "Check PCM" as follows.
NO
- Substitute with a known - good OTS and check for proper operation. If the problem is corrected, replace OTS and go to "Verification of Vehicle Repair" procedure.
2. Check PCM
(1) Ignition "OFF" and Connect Scantool
(2) Ignition"ON" & Engine "OFF"

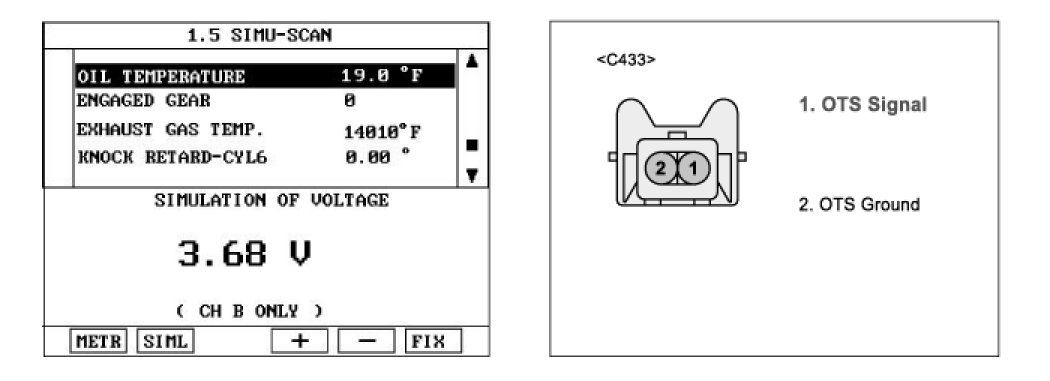

(3) Select simulation function on scantool.
(4) Simulate voltage at terminal "1" of OTS signal harness connector.




(5) Does the OTS signal value changes according to simulation voltage ?
YES
- Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage. Repair or replace if necessary and go to "Verification of Vehicle Repair" procedure
NO
- Substitute with a known - good PCM and check for proper operation. If the problem is corrected, replace PCM and go to "Verification of Vehicle Repair" procedure.

CAUTION:
There is a memory reset function on scantool that can erase optional components automatically detected and memorized by PCM.Before or after testing PCM on the vehicle, use this function to reuse the PCM.
