Component Inspection

Component Inspection

1. Check resistance of OTS
(1) IG "ON" & ENG "OFF"

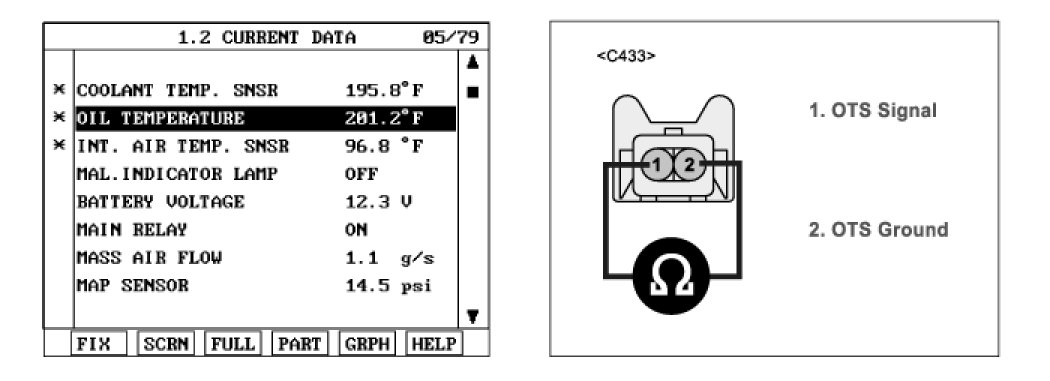

(2) Monitor Oil Temperature parameter on the scantool
(3) IG "OFF" & ENG "OFF"
(4) Disconnect OTS connector.
(5) Measure resistance between terminal 1 and 2 of OTS connector (Component Side) after checking out the oil temperature with scantool

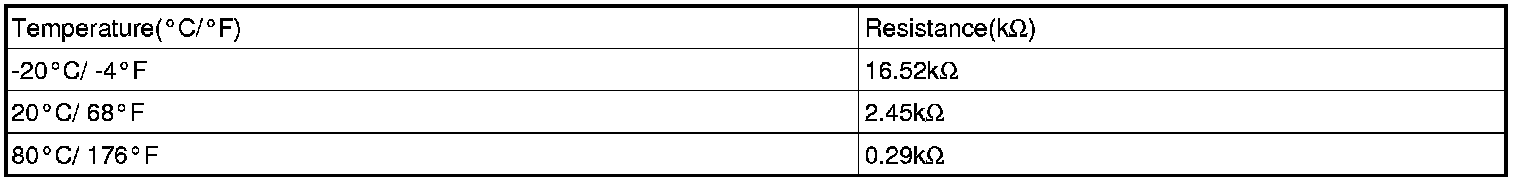

A. Specification :









(6) Is the measured resistance within specification ?
YES
- Go to "Verification of Vehicle Repair" procedure.
NO
- Substitute with a known - good OTS and check for proper operation. If the problem is corrected, replace OTS and go to "Verification of Vehicle Repair" procedure.
