W/Harness Inspection

Terminal and Connector Inspection

1. Many malfunctions in the electrical system are caused by poor harness and terminal condition. Faults can also be caused by interference from other electrical systems, and mechanical or chemical damage.
2. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage.
3. Has a problem been found?
YES
- Repair as necessary and go to "Verification of Vehicle Repair" procedure
NO
- Go to" Control Circuit Inspection" procedure.

Control Circuit Inspection

1. IG "OFF" and Disconnect OCV connector.

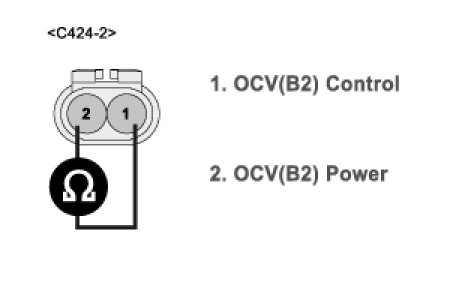

2. Measure resistance between terminal 1 and 2 of OCV harness connector.
A. Specification : Infinite Ohms




3. Is the measured resistance within specification ?
YES
- Go to "Component Inspection" procedure.
NO
- Repair or replace as necessary and go to "Verification of Vehicle Repair" procedure.
