W/Harness Inspection

Terminal and Connector Inspection

1. Many malfunctions in the electrical system are caused by poor harness and terminal condition. Faults can also be caused by interference from other electrical systems, and mechanical or chemical damage.
2. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage.
3. Has a problem been found?
YES
- Repair as necessary and go to "Verification of Vehicle Repair" procedure
NO
- Go to" Control Circuit Inspection" procedure.

Control Circuit Inspection

1. IG "OFF" & disconnect HO2S (B2/S1) connector.
2. IG "ON" & ENG "OFF".

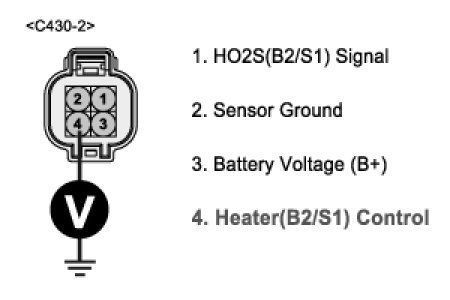

3. Measure voltage between terminal 4 of HO2S (B2/S1) harness connector and chassis ground.
A. Specification : Approx. 0V




4. Is the measured voltage within specification ?
YES
1) Go to "Component Inspection" procedure.
NO
1) Repair short to battery in HO2S (B2/S1) Heater control circuit and go to "Verification of Vehicle Repair" procedure.
