General Information

Component Location





General Description

The ESC switch is used to temporarily deactivate ESC control.

DTC Description

Trouble code is set when the condition that the level of ESC switch is high is continued for 60 sec.
When the ESC switch failure is set ESC Warning lamp will illuminate and HECU inhibit the ESC control and allow the ABS/EBD control.

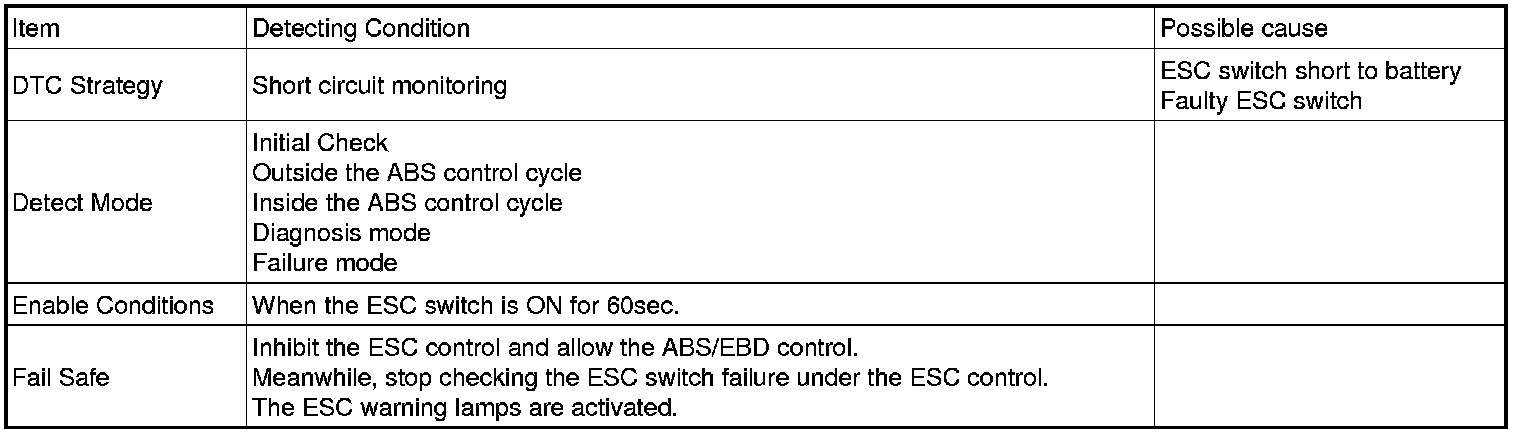

DTC Detecting Condition





Specification





Schematic Diagram
