Monitor Scantool Data

Monitor Scantool Data

1. Connect 'TPMS exciter' or scantool to Data Link Connector (DLC).
2. Select "TPMS DIAGNOSIS" mode.
3. Select the "FULL" mode of "TPM DATA VALUES" function.

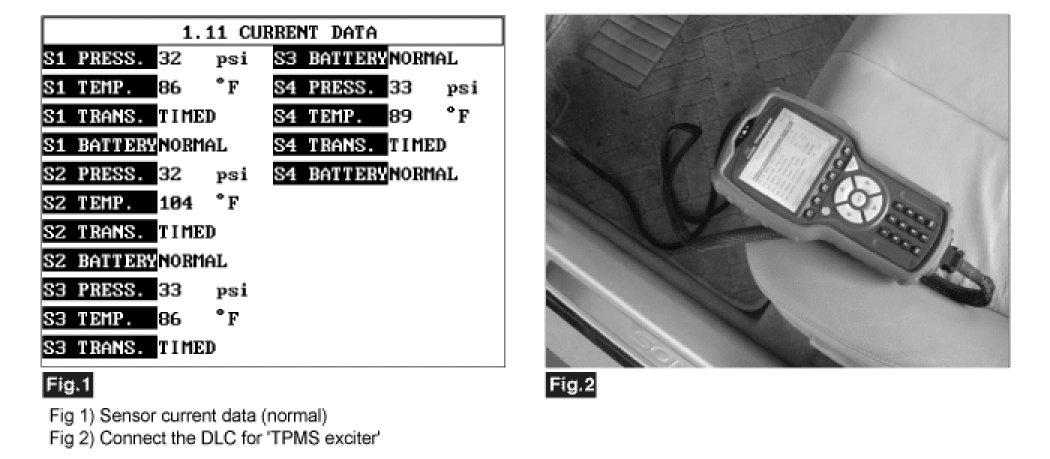

4. Check current data about S1 ~ S4 on the ']TPMS exciter' or scantool.
A. Specification : All current data for S1 ~ S4 is displayed normally




5. Is the current data displayed normally?
YES
1) Fault is intermittent. It has been repaired and TPMS receiver module memory is not cleared yet.
Go to "Verification of vehicle Repair" procedure.
NO
1) Replace an unmonitored tire with a WE sensor-installed tire and register sensor ID with 'TPMS exciter'.
Go to "Verification of Vehicle Repair" procedure.
