Monitor Scantool data

Monitor Scantool Data

1. Connect scantool to Data Link Connector (DLC)
2. Ignition "ON" & Engine "ON".
3. Maintain the vehicle standing still.

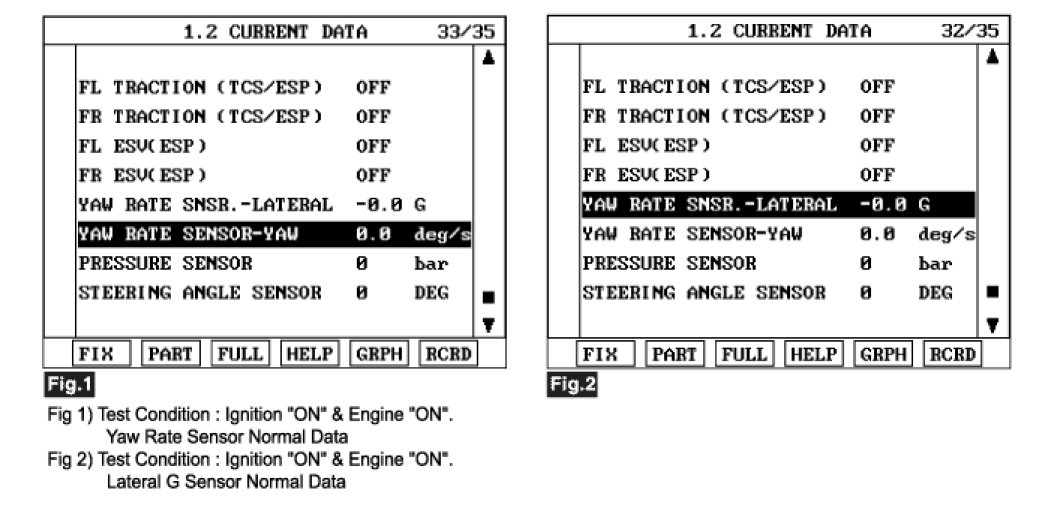

4. Monitor the "YAW RATE SENSOR-YAW, YAW RATE SENSOR-LATERAL" parameter on the Scantool.
A. Specification : Lateral G Sensor : approx. ± 0.0 G, YAW Rate Sensor :approx. ± 0.0 deg/s




5. Is parameter displayed within specifications?
YES
1) Fault is intermittent caused by poor connection in Yaw Rate & Lateral G sensor harness and/or HECU's connector or was repaired and HECU memory was not cleared. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage. Repair or replace as necessary and then go to "Verification of Vehicle Repair" procedure.
NO
1) Go to "W/Harness Inspection" procedure.
