General Information

Component Location





General Description

The one pressure sensor,installed in the master cylinder, sense the brake oil pressure to judge driver's brake intention when ESC is operating.

DTC Description

Each unfiltered input signal voltage is monitored to be in the range of 0.2V ± 0.1V < input signal voltage < 4.8V ± 0.1V.
A failure is detected if the output signal value is out of specified range for more than 1s or pressure sensor self test form is against to specification during self test.

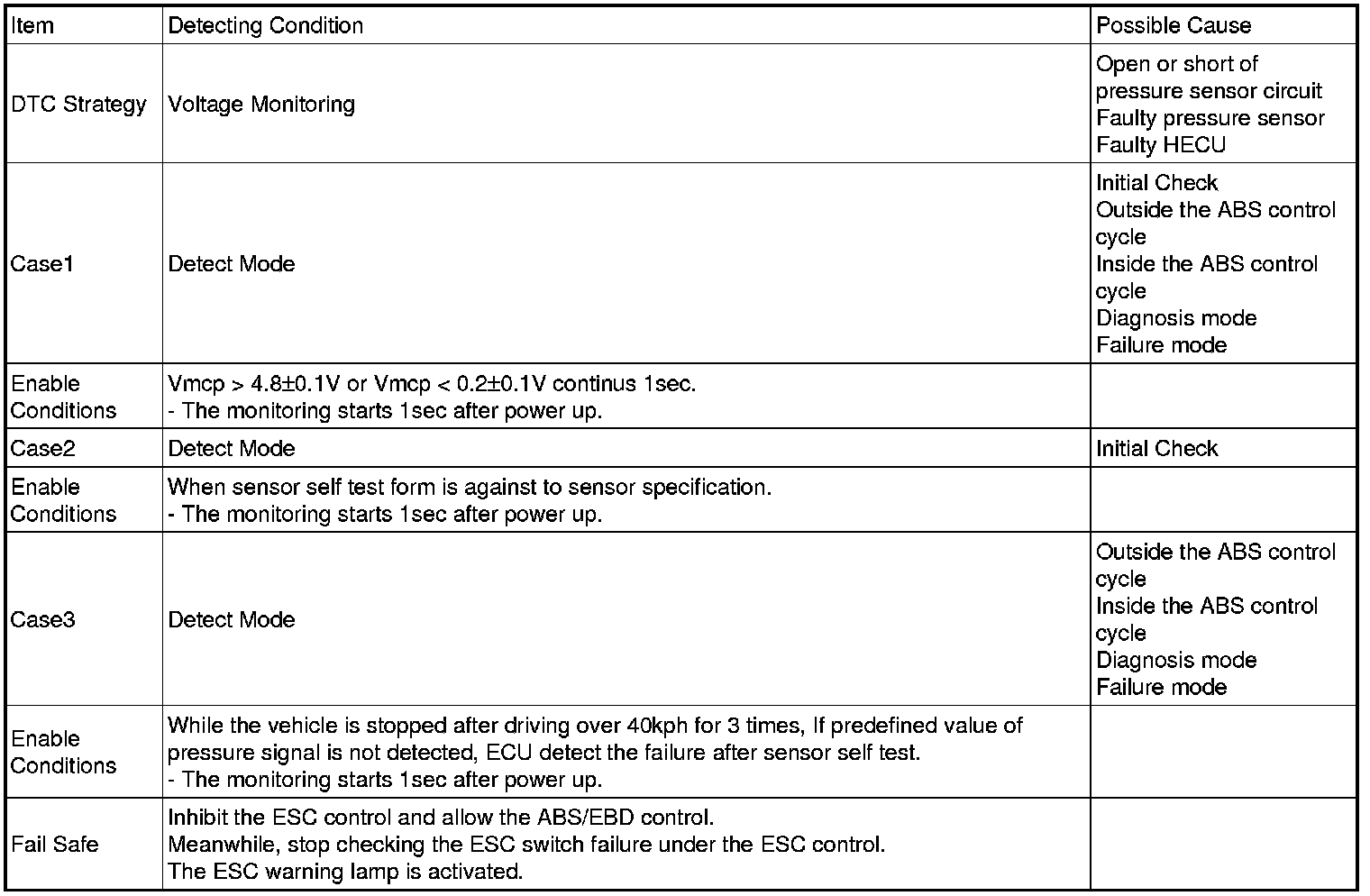

DTC Detecting Condition





Schematic Diagram

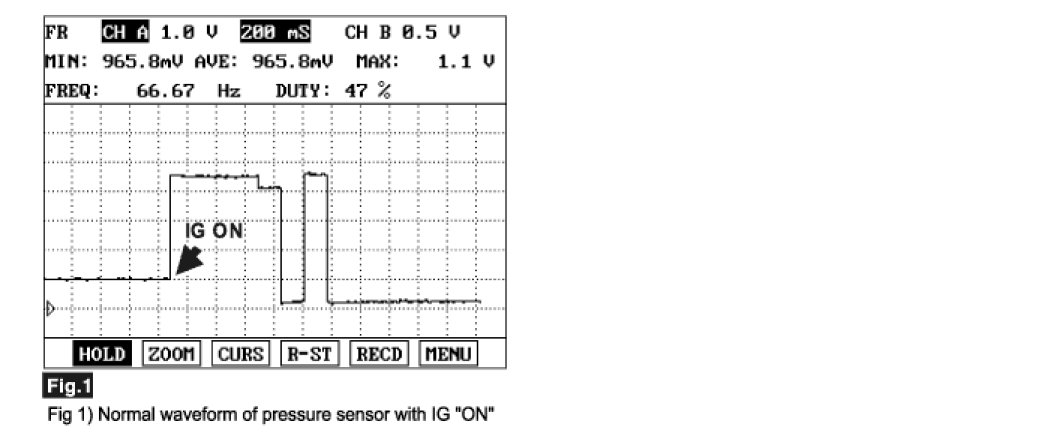

Signal Waveform
