General Information

Component Location





General Description

Rear Side Impact Sensor (RSIS) is located in both side of C pillar detects broad collision. When SIS delivers collision signal to SRSCM, SRSCM checks if safing sensor located in SRSCM detects collusion. and if both SIS and safing sensor detects collision simultaneously, SRSCM operates side air bag.

DTC Description

The SRSCM sets DTC B1416 if RDSIS with wrong ID is detected.

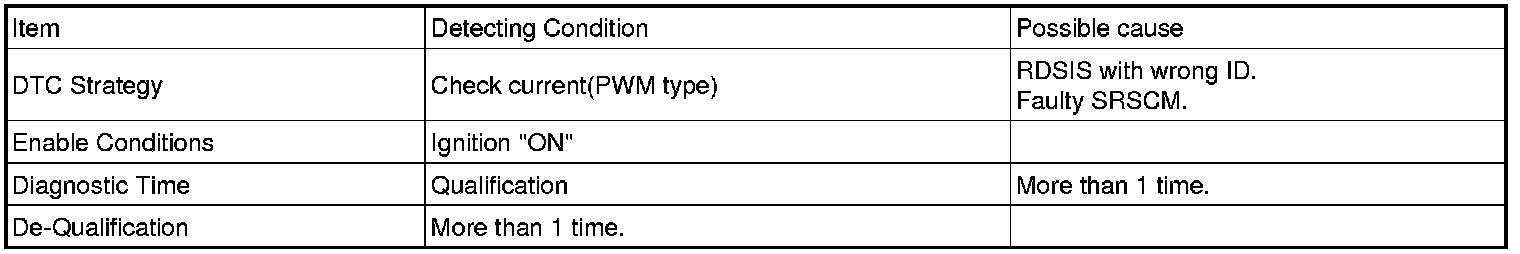

DTC Detecting Condition





Schematic Diagram
