Repair Procedures

REMOVAL

1. Remove the rear wheel & tire.

CAUTION:
Be careful not to damage the hub bolts when removing the rear wheel & tire.

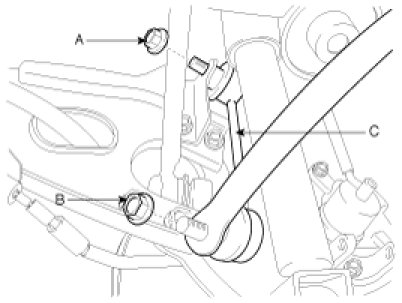

2. Remove the stabilizer link (C) by loosening the nuts (A, B).

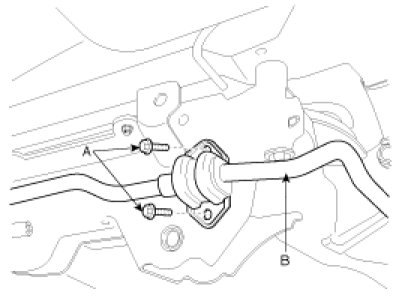

3. Remove the rear stabilizer bar (B) from the cross member by loosening the bracket mounting bolts (A).

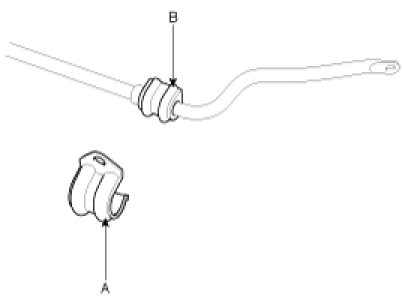

4. Remove the mounting bracket (A) and bushing (B) from the rear stabilizer bar.






INSTALLATION

1. Install the mounting bracket (A) and bushing (B) to the rear stabilizer bar.




2. Install the rear stabilizer bar (B) to the cross member by tightening the bracket mounting bolts (A).

Tightening torque Nm (kgf.m, lb-ft):
45 - 55 (4.5 - 5.5, 33 - 40)




3. Connect the rear stabilizer link (C) between the rear stabilizer bar and the trailing arm and then tighten the nut (A, B).

Tightening torque Nm (kgf.m, lb-ft):
45 - 55 (4.5 - 5.5, 33 - 40)




4. Install the rear wheel & tire.

Tightening torque Nm (kgf.m, lb-ft):
90 - 110 (9.0 - 11.0, 65 - 80)

CAUTION:
Be careful not to damage the hub bolts when installing the rear wheel& tire.
