Disassembly

DISASSEMBLY

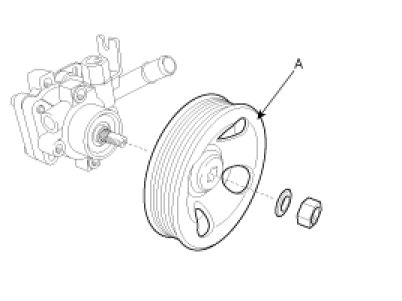

1. Remove the pump pulley (A) by loosening the lock nut.

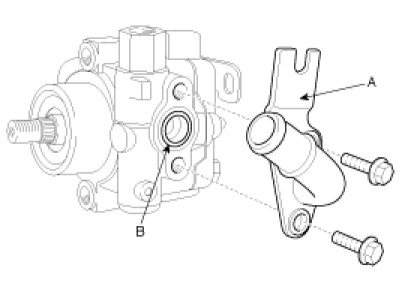

2. Remove the suction tube (A) and O-ring (B).

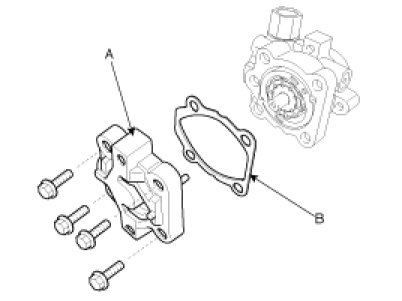

3. Remove the pump cover (A) and gasket (B).

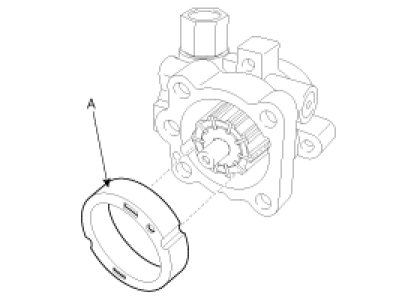

4. Remove the cam ring (A).

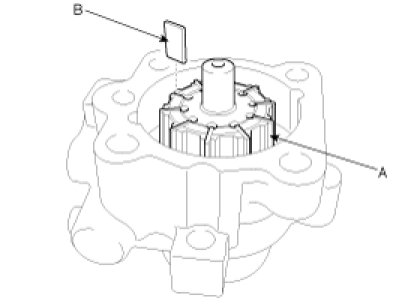

5. Remove the vanes (B) from the rotor (A).

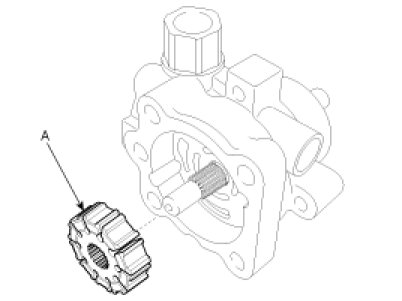

6. Remove the rotor (A).

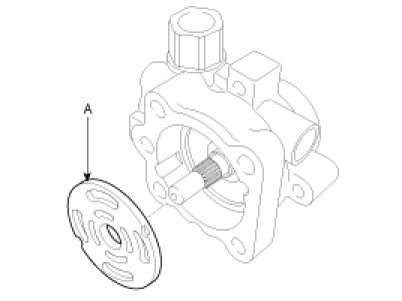

7. Remove the side plate (A).

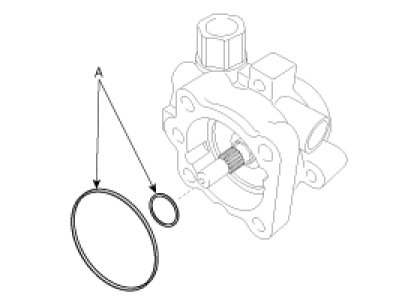

8. Remove the O-rings (A).

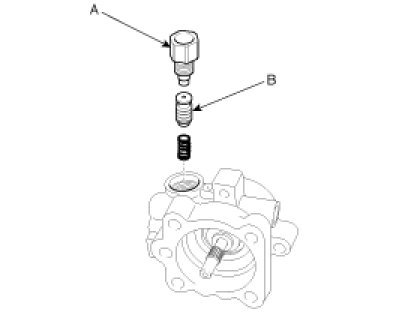

9. Unscrew the connector assembly (A) and then pull the flow control valve (B) and spring out of the pump body.




10. Remove the O-ring from the connector assembly (A).
