Component Tests and General Diagnostics

On-vehicle Inspection

Inspect Spark Plug

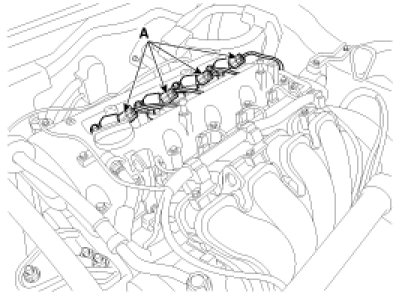

1. Remove the ignition coil connector (A).




2. Remove the ignition coil (A).




3. Using a spark plug socket, remove the spark plug.

CAUTION:
Be careful that no contaminates enter through the spark plug holes.

4. Inspect the electrodes (A) and ceramic insulator (B).

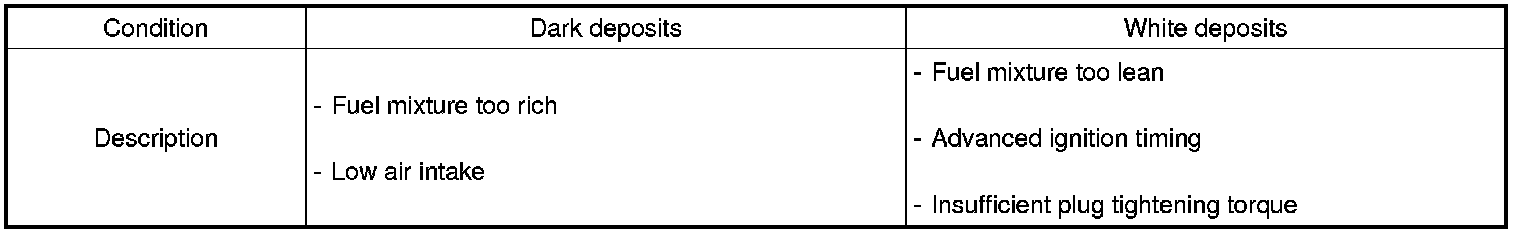

Inspection Of Electrodes





5. Check the electrode gap (A).

Standard
Unleaded : 1.0 - 1.1 mm (0.0394 - 0.0433 in.)
