Fuel Filler Neck: Service and Repair

Removal

1. Disconnect the fuel filler hose (A) and vent hose (B).




2. Open the fuel filler door and unfasten the filler-neck assembly mounting screws (A).




3. Remove the rear-LH wheel, tire, and the inner wheel house.

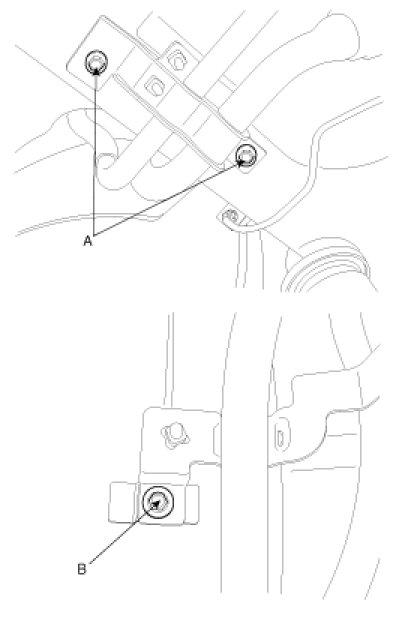

4. Remove the bracket mounting bolts (A,B) and remove the filler-neck assembly.






Installation

1. Installation is reverse of removal.
