Disassembly

DISASSEMBLY

1. Remove the snap ring (A).




2. Remove the hub assembly from the knuckle assembly.

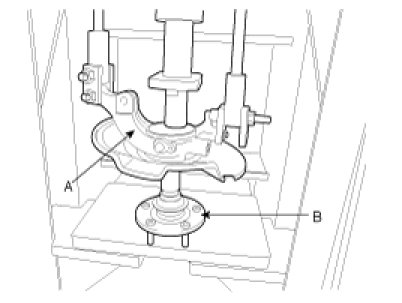

(1) Install the front knuckle assembly (A) on press.
(2) Lay a suitable adapter (B) upon the hub assembly shaft.




(3) Remove the hub assembly (B) from the knuckle assembly (A) by using press.




3. Remove the hub bearing inner race from the hub assembly.

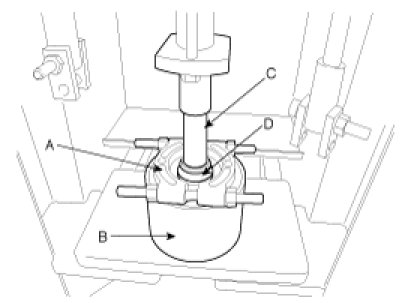

(1) Install a suitable tool (A) for removing the hub bearing inner race on the hub assembly.
(2) Lay the hub assembly and tool (A) upon a suitable adapter (B).
(3) Lay a suitable adapter (C) upon the hub assembly shaft.
(4) Remove the hub bearing inner race (D) from the hub assembly by using press.




4. Remove the hub bearing outer race from the knuckle assembly.

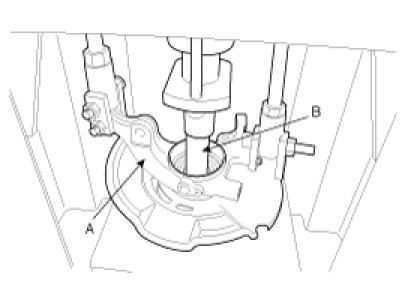

(1) Lay the hub assembly (A) upon a suitable adapter (B).
(2) Lay a suitable adapter (C) upon the hub bearing outer race.
(3) Remove the hub bearing outer race from the knuckle assembly by using press.




5. Replace hub bearing with a new one.
