Reassembly

REASSEMBLY

1. Apply genuine brake fluid to the rubber parts of the cylinder kit and grommets.
2. Carefully insert the springs and pistons in the proper direction.

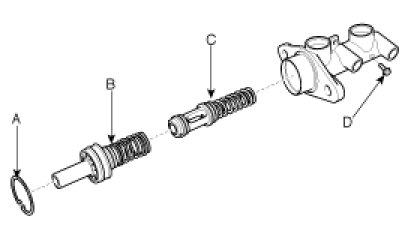

3. Press the secondary piston (C) with a screwdriver and install the cylinder pin (D).




4. Install the primary piston assembly (B) and the retainer ring (A).

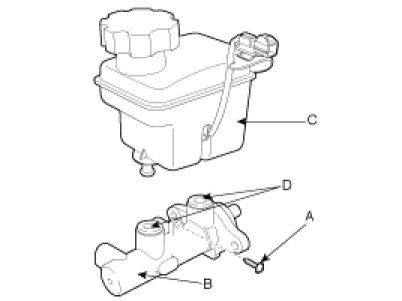

5. Mount two grommets (D).
6. Install the reservoir (C) to the master cylinder (B) and tighten the screw (A).
