Power Seat

REPLACEMENT

POWER SEAT

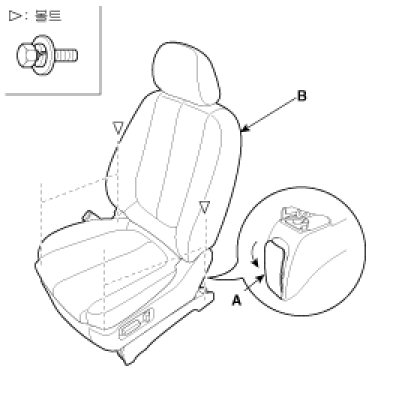

1. Remove the seat assembly mounting cover (A).
2. After loosening the seat assembly mounting bolts and nuts, remove the seat assembly (B).




3. Disconnect the connectors, and remove the seat assembly.

DRIVER`S

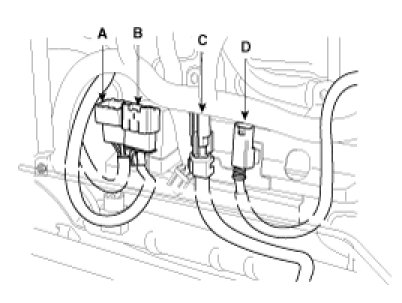

A. Disconnect the power seat connector (A), airbag connect (B), seat buckle (C), STPS connector (D) and then remove the seat assembly.




PASSENGER`S

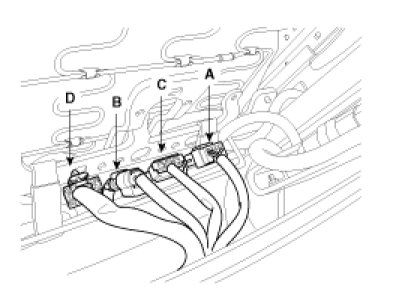

A. Disconnect the power seat connector (A), airbag connect (B), seat buckle (C), OCS connector (D) and then remove the seat assembly.




4. Installation is the reverse of removal.
