Hood Latch: Service and Repair

REPLACEMENT

HOOD LATCH REPLACEMENT

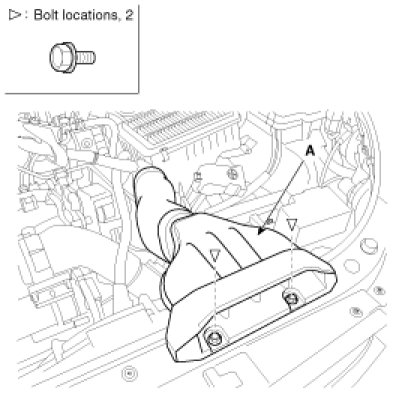

1. Loosen the air duct (A) mounting bolts.

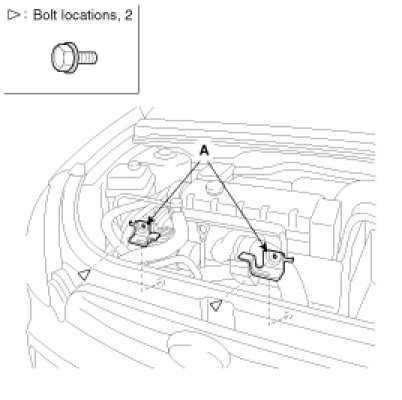

2. Remove the under cover (A).

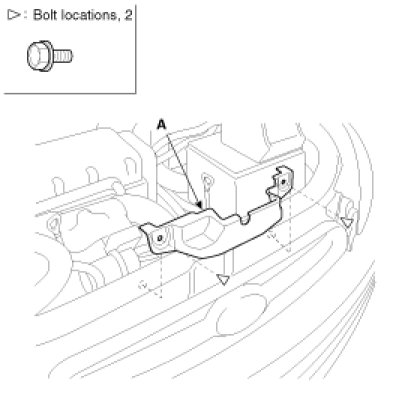

3. After loosening the mounting bolts, then remove the bracket (A).

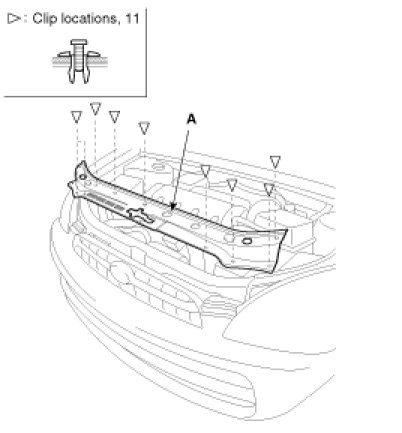

4. Detach the clips, then remove the hood latch cover(A).

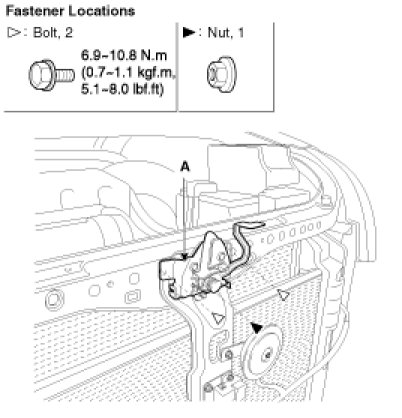

5. Remove the hood latch (A) mounting bolts.

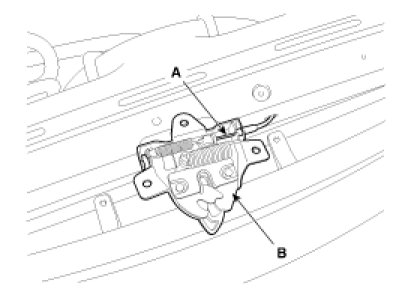

6. Disconnect the hood latch cable (A) and remove the latch (B).




7. Installation is the reverse of removal.

NOTE:
- Make sure the hood latch cable is connected properly.
- Make sure the hood locks securely.
