Radio, Stereo, and Compact Disc: Service and Repair

REPLACEMENT

AUDIO ASSEMBLY REPLACEMENT
1. Remove the center facia panel.

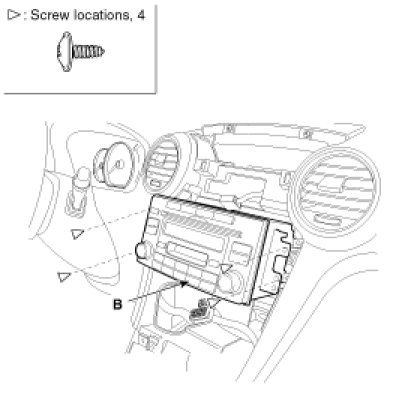

2. Loosen the audio (B) mounting screws.

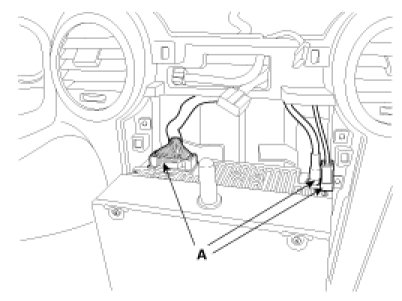

3. Disconnect the connector (A).




4. Installation is the reverse of removal.

NOTE:
Make sure the connector is plugged in properly.
