Auxiliary Input / Output Jack: Service and Repair

REMOVAL

1. Remove the floor console(A).




2. Disconnect the jack assembly connector from the floor console.

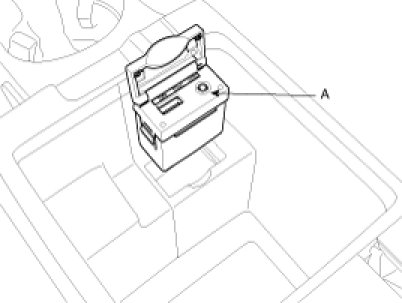

3. Remove the AUX jack(A) from the floor console after loosening 2 screws.






INSTALLATION

1. Install the AUX jack.
2. Connect the AUX jack connector.
3. Install the floor console.
