Component Inspection

Component Inspection

1. Accelerator Pedal Rod Inspection
(1) Verify that the accelerator pedal operate freely without binding between full closed and wide open position by operating the accelerator pedal.
(2) Check for poor carpet fit under the accelerator controls pedal.
(3) Repair or replace as necessary and go to "Verification of Vehicle Repair" procedure. If OK, go to next step as below.
2. APS1 Inspection
(1) IG KEY 'ON'.

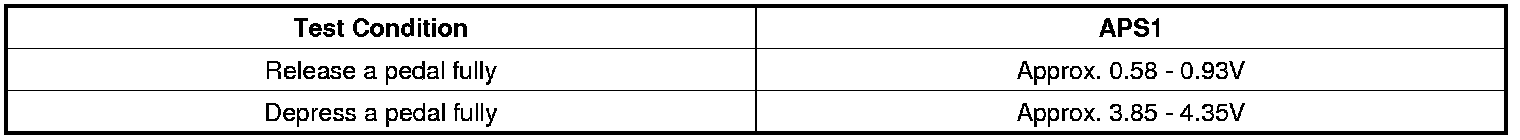

(2) Connect GDS and monitor the "APS1" parameter on the data list.
Specification : Refer to "Signal Waveform & Data" in the "General Information".





(3) Is data in accordance with "Data Analysis"?
