W/Harness Inspection

Terminal and Connector inspection

1. Many malfunctions in the electrical system are caused by poor harness(es) and terminals. Faults can also be caused by interference from other electrical systems, and mechanical or chemical damage.
2. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage.
3. Has a problem been found?






Signal Circuit Inspection

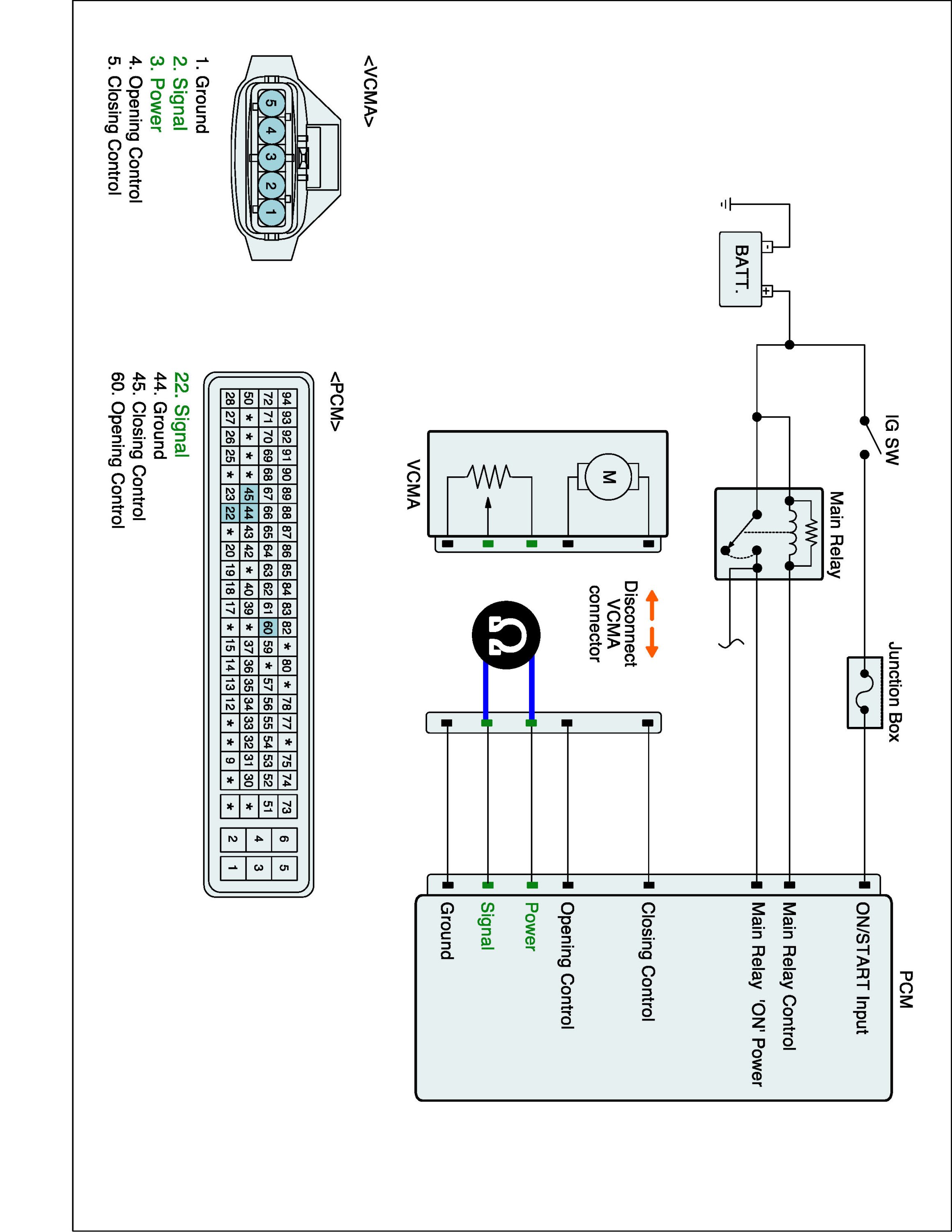

Check for Short to Power in Signal Circuit
1. IG KEY OFF.
2. Disconnect VCMA harness connector.
3. Measure resistance between signal terminal and power terminal of VCMA harness connector.

Specification : Infinite Ohms





4. Is resistance within specification?

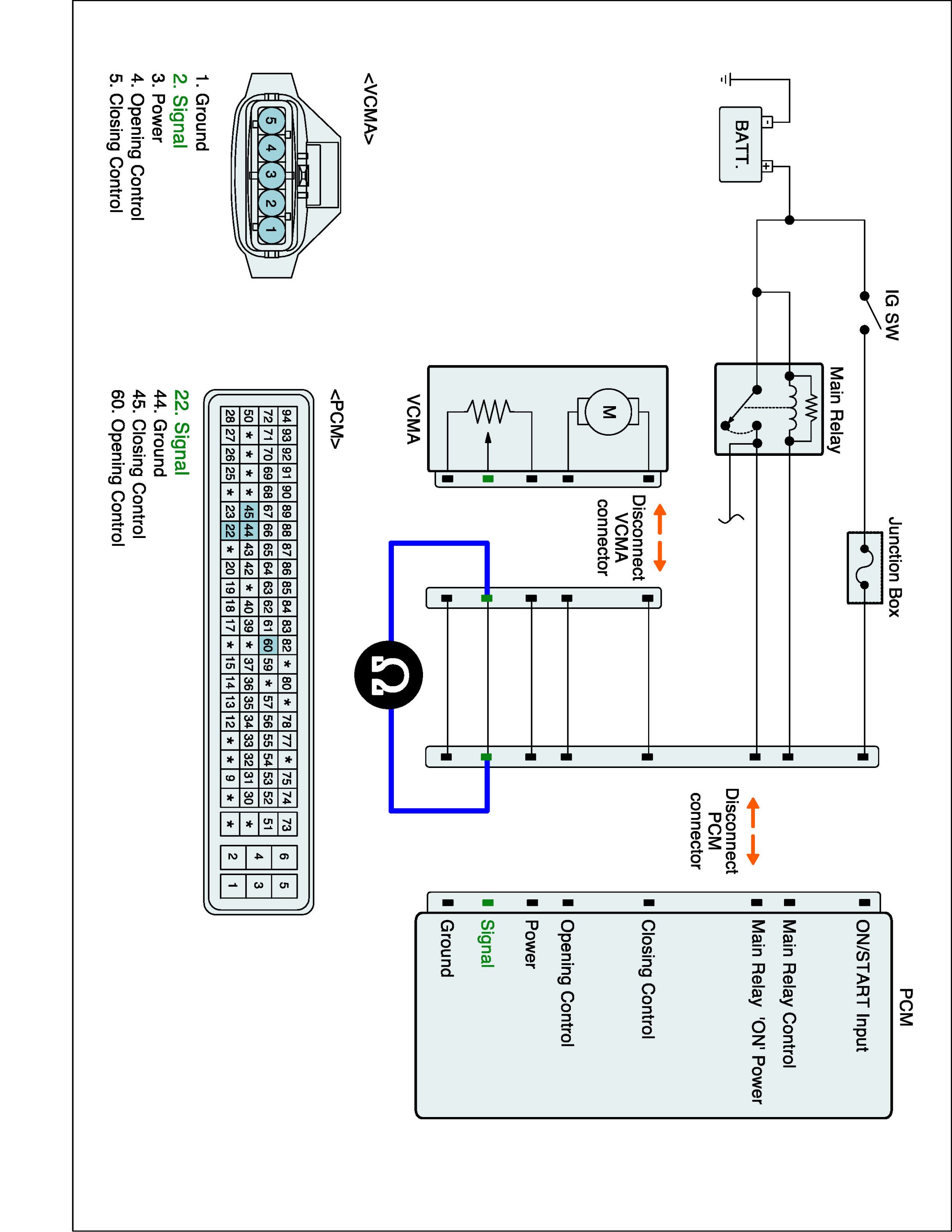

Check for Open in Signal Circuit
1. IG KEY OFF.
2. Disconnect VCMA harness connector and PCM harness connector.
3. Measure resistance between both ends of signal line.

Specification : Approx. 0 Ohms





4. Is resistance within specification?






Ground Circuit Inspection

Check for Open in Ground Circuit
1. IG KEY OFF.
2. Disconnect VCMA harness connector and PCM harness connector.
3. Measure resistance between both ends of ground line.

Specification : Approx. 0 Ohms





4. Is resistance within specification?
