Component Inspection





Component Inspection

1. IG KEY OFF.

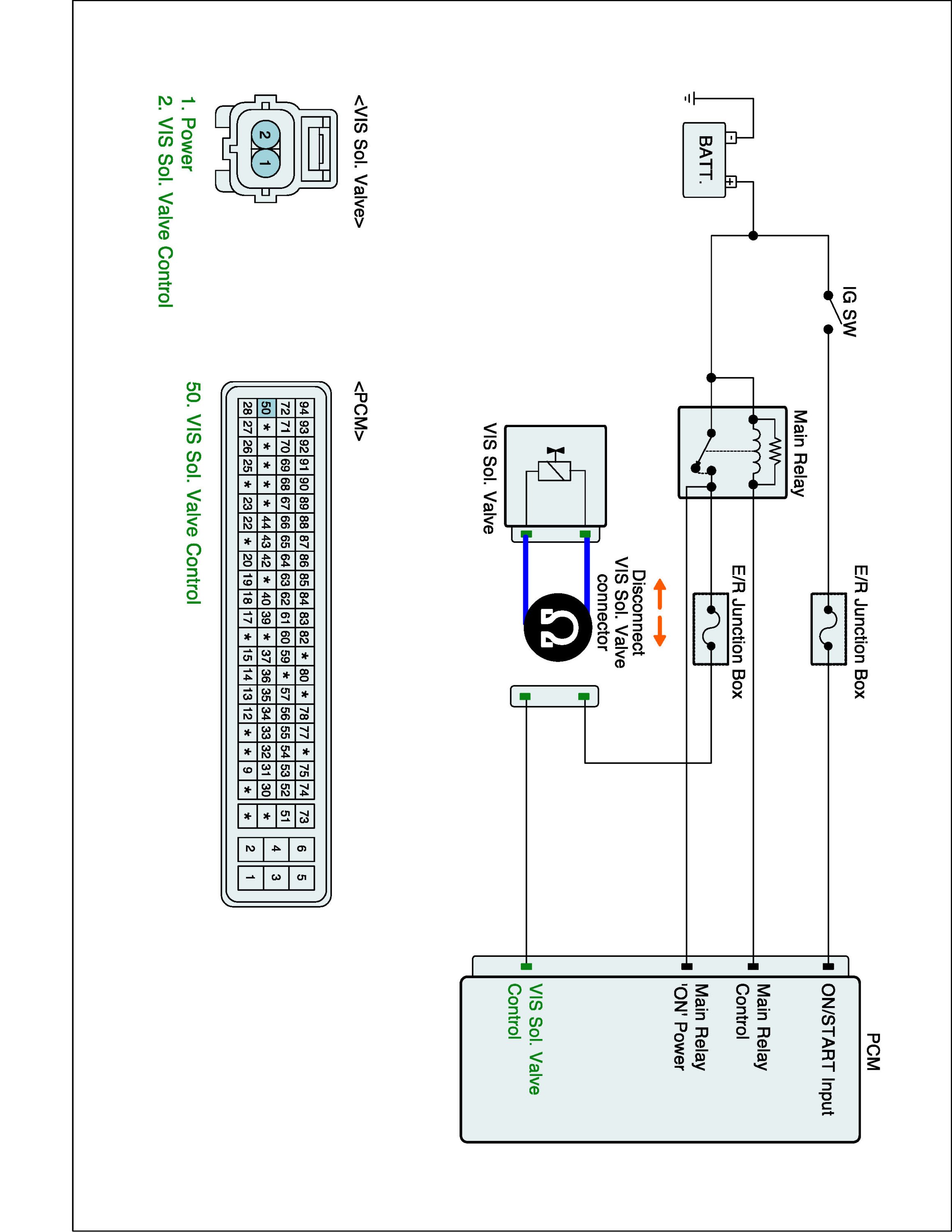

2. Disconnect VIS Sol. Valve harness connector.
3. Measure resistance between power terminal and control terminal of VIS Sol. Valve connector. (Component side)
Specification

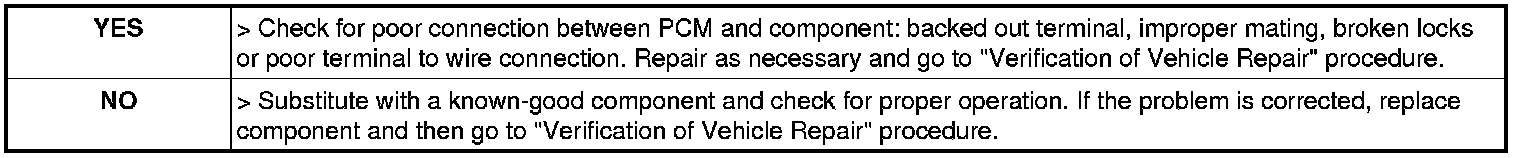

4. Is resistance within specification?
