Component Inspection

Component Inspection

Check auto cruise switch
1. IG key OFF.
2. Disconnect 'CRUISE REMOCON SWITCH' connector.
3. Measure resistance between 'Signal (Cruise sw) ' terminal and 'CRUISE MAIN' terminal of 'CRUISE REMOCON SWITCH' harness connector with each switch depressed. (Component side))
4. Measure resistance between 'Signal (Cruise sw) ' terminal and 'Ground (Cruise sw) ' terminals of 'CRUISE REMOCON SWITCH' harness connector. (Component side)

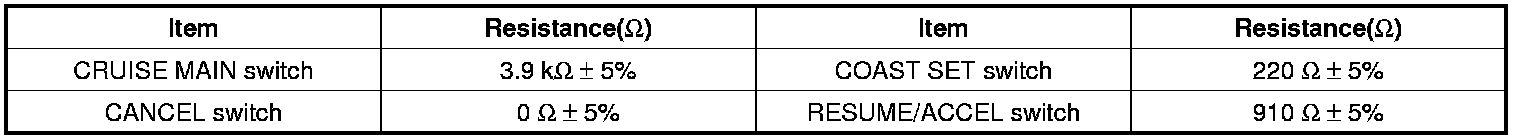

Specification :









5. Is the measured value within specification?






NOTE:
There is a memory reset function on scan tool that can erase optional parts automatically detected and memorized by ECM. After testing ECM on the vehicle, use this function to reuse the ECM on the others.
