General Information

Component Location





General Description

The Fuel Level Sensor (FLS) measures the fuel level in fuel tank and its information is used to supply the PCM with information regarding the monitoring condition of the EVAP canister purge system for leak detection. If the fuel level sensor is monitored for high or low stuck or difference between voltage of fuel level sensor and voltage deviation of fuel level sensor is exceeds limited value while driving, this is interpreted by the PCM as a fault.

DTC Description

PCM compares fuel level measured with filtered value. If there is difference over 50% between each other, PCM sets P0464.

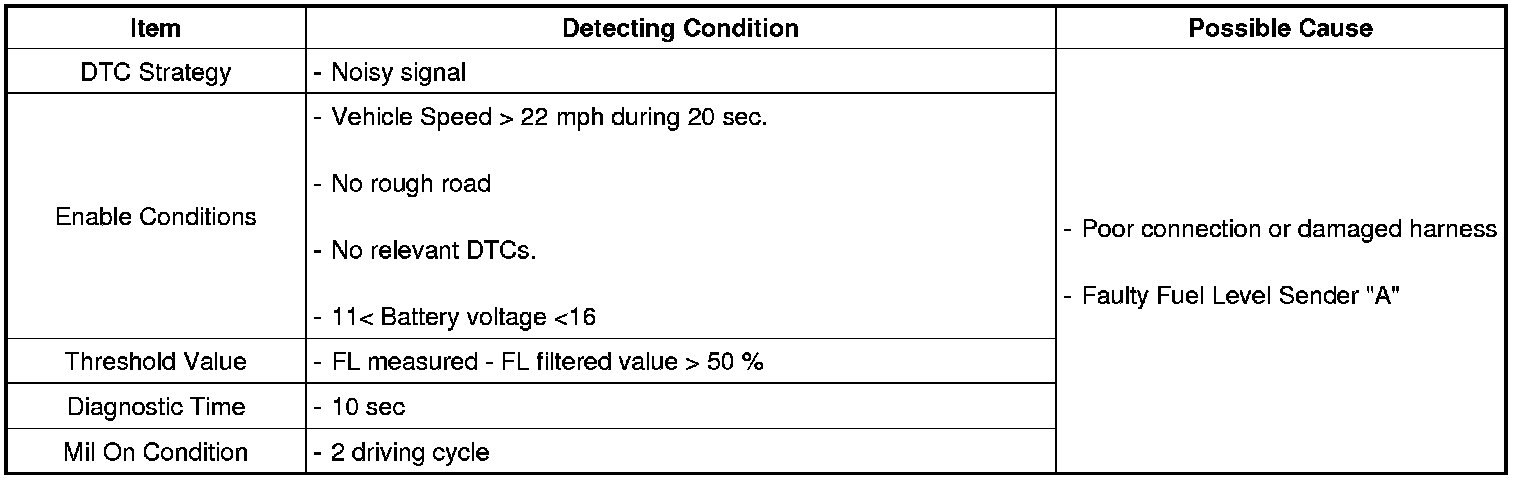

DTC Detecting Condition





Specification





Diagnostic Circuit Diagram
