General Information

General Description

In order to provide the best possible combination of drivability, fuel economy and emission control, the PCM uses a closed loop air/fuel metering system. The PCM monitors the HO2S signal voltage and adjusts fuel delivery based it in closed loop fuel control. Changes in fuel delivery will be indicated by the long-term and the short-term fuel trim values. The ideal fuel trim value is around 0%. The PCM will add fuel when the HO2S signal is indicating a lean condition. Additional fuel is indicated by fuel trim values that are above 0%. The PCM will reduce fuel when the HO2S signal is indicating a rich condition. Reduction in fuel is indicated by fuel trim values that are below 0%. The DTC relevant to fuel trim will be set when the amount reaches excessive levels because of a lean or rich condition.

General Description

If the fuel trim values reaches the maximum or minimum threshold, then feedback control is no longer possible and emissions will be increased. The PCM sets DTC P0170 if no proportional fuel adaptation occurs for a defined time after the short term fuel trim has reached its minimum or maximum threshold.

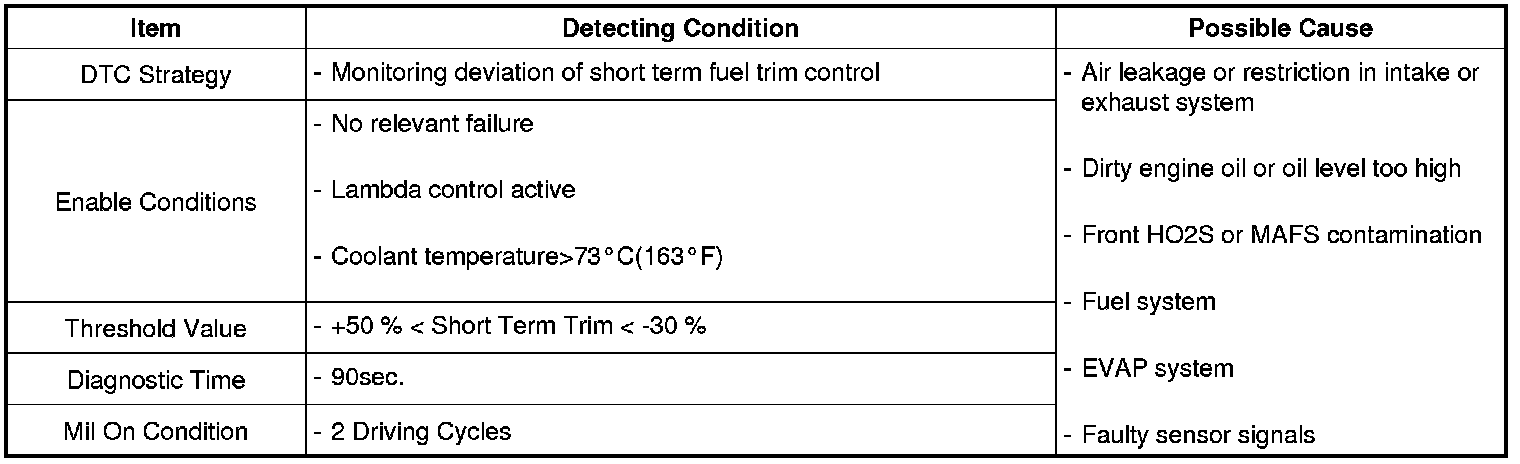

DTC Detecting Condition





Signal Waveform & Data

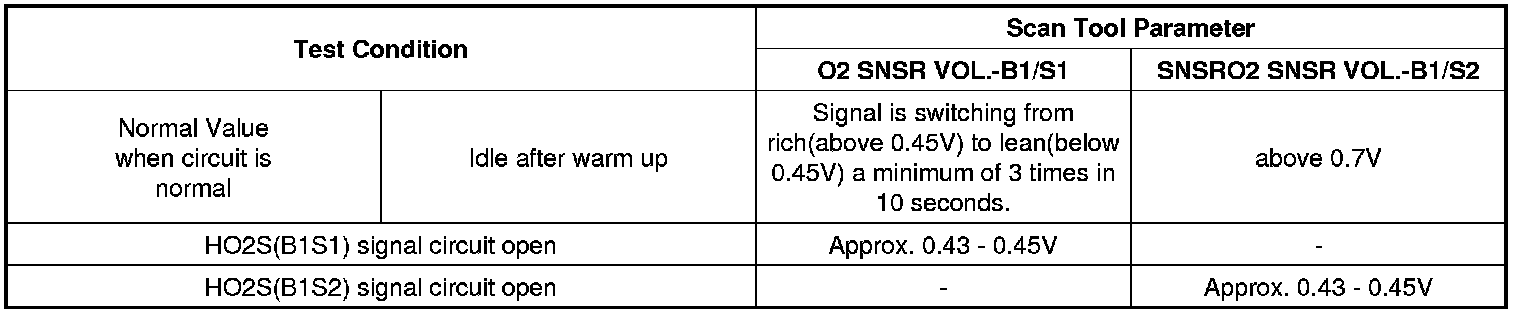

1. Scan Tool Display for HO2S





2. MAPS Terminal voltage with pressure

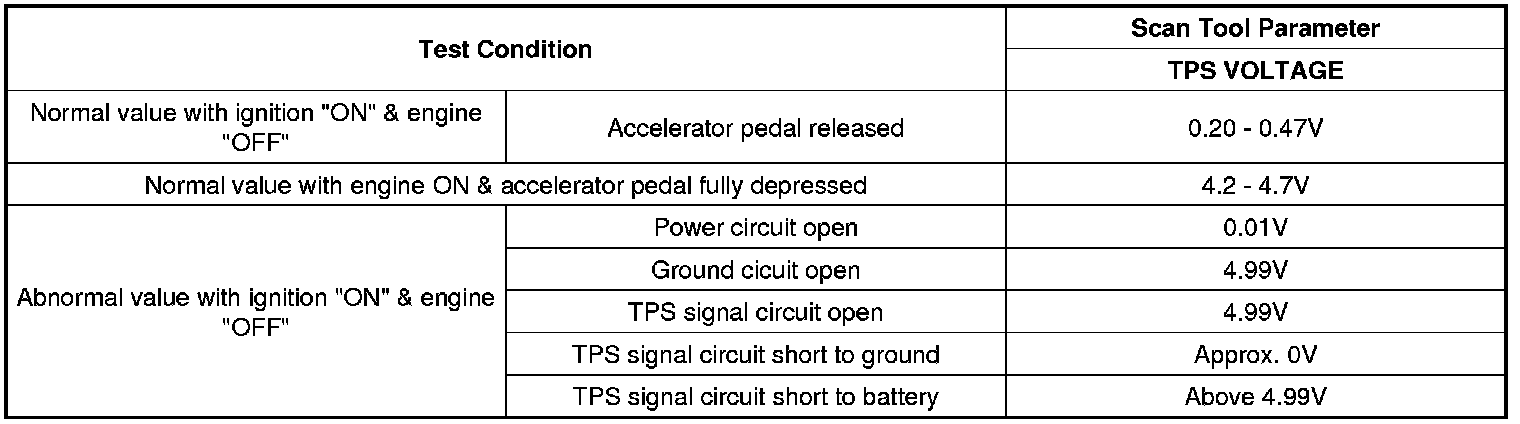

3. Scan Tool Display for TPS
