The rear heated oxygen sensor is mounted on the rear side of the Catalytic Converter (warm-up catalytic converter) or in the rear exhaust pipe, which is able to detect catalyst efficiency. The rear heated oxygen sensor (HO2S) produces a voltage between 0V and 1V. This rear heated oxygen sensor is used to estimate the oxygen storage capability. If a catalyst has good conversion properties, the oxygen fluctuations are smoothed by the oxygen storage capacity of the catalyst. If the conversion provided by the catalyst is low due to aging, poisoning or misfiring, then the oxygen fluctuations are similar to signals from the front oxygen sensor.

DTC Description

PCM sets DTC P0136 if the PCM detects that the rear HO2S signal circuit is open.

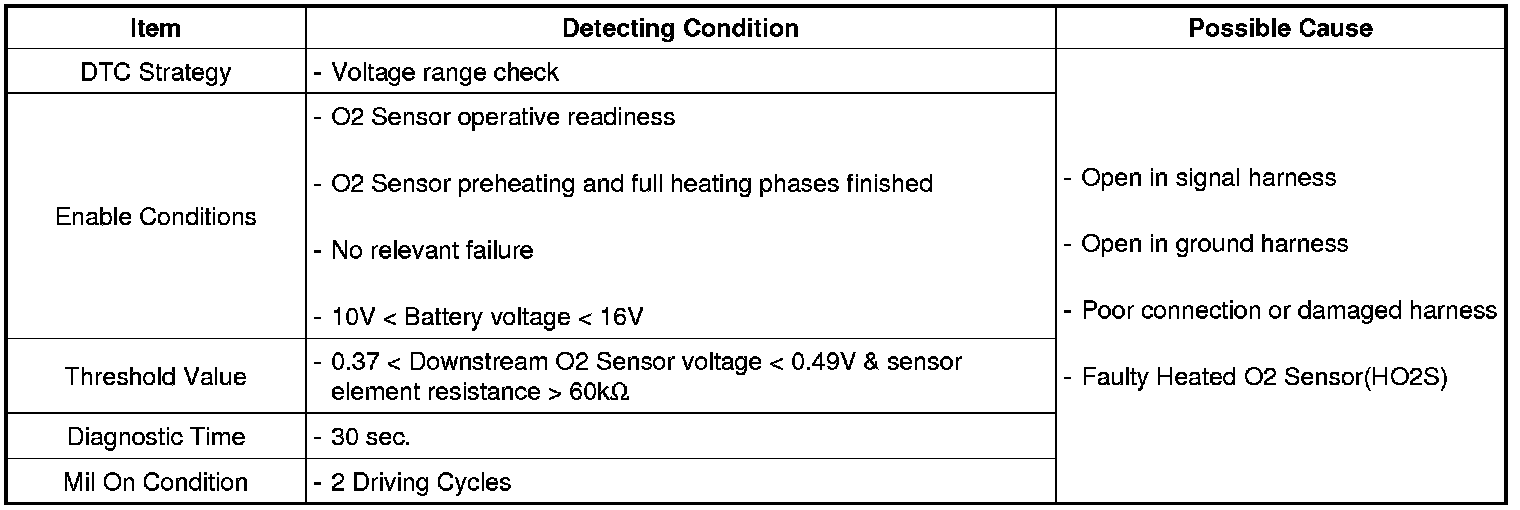

DTC Detecting Condition





Diagnostic Circuit Diagram





Signal Waveform & Data




> Sector A : Signal Normal
> Sector B : Signal Fluctuation
> Sector C : Signal Recovery
