Component Inspection





Component Inspection

1. Measure the resistance between signal terminal and ground terminal of ECTS connector. (Component side)

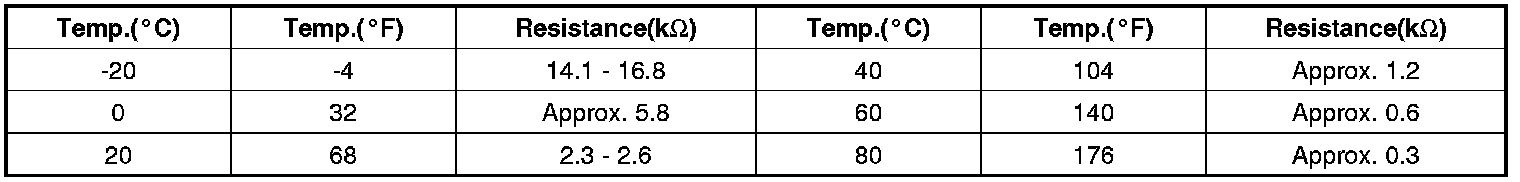

Specification









2. Is resistance within the specification?
