1. Check MAPS performance.
(1) IG "OFF".
(2) Connect CH A probe to signal terminal of TPS and CH B probe to signal terminal of MAPS connector.
(3) Warm up the engine to normal operating temperature.
(4) Measure signal waveform of MAPS and TPS together by stepping on and off the accelerator pedal.

Specification :

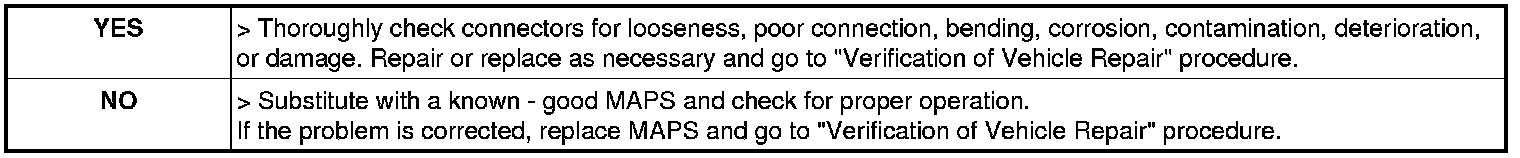

(5) Is the measured signal waveform (Comparison response of TPS with MAPS) O.K ?
