Component Inspection





Component Inspection

1. Ignition "OFF"
2. Disconnect oil control valve connector
3. Measure resistance between power terminal and control terminal of the solenoid connector (Component side).

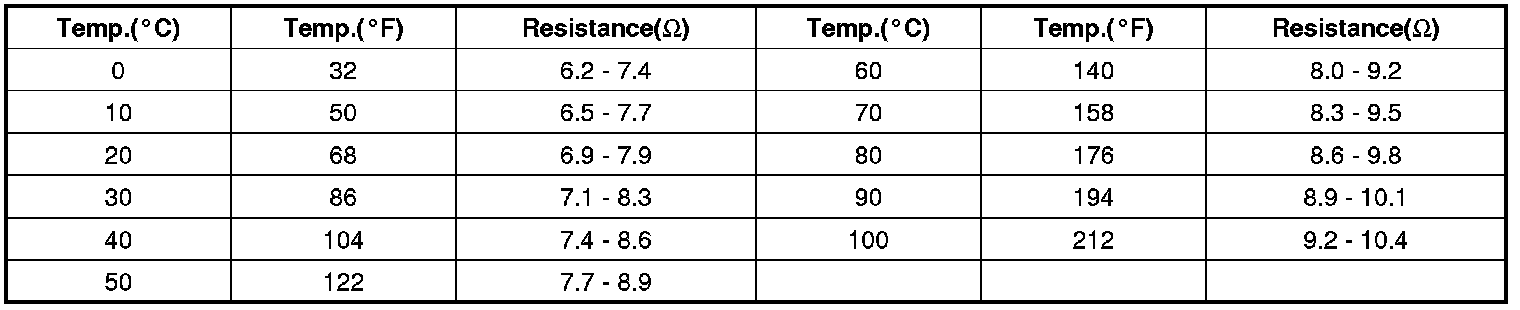

Specification

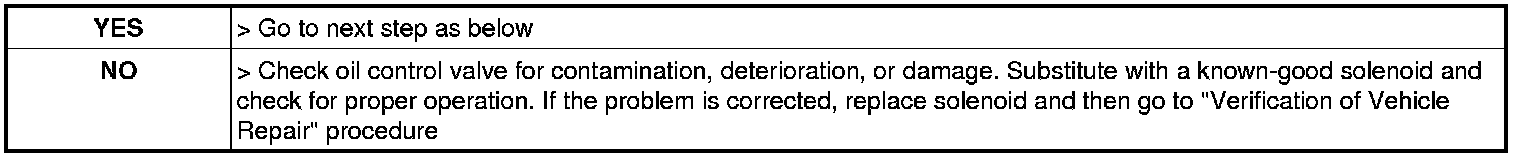

4. Is resistance within specification?
