General Description

The CVVT (Continuously Variable Valve Timing) system built on the camshaft helps the engine decrease the exhaust gas and increase engine power and fuel economy by changing the valve open/close timing of the camshaft continuously. The valve control solenoid, the main control part of the CVVT, changes the direction of the oil path through the CVVT by the duty control of the PCM and changes the open and close timing of the intake and exhaust valves.

DTC Description

PCM sets DTC P0079 if the PCM detects that the exhaust valve control solenoid control circuit is short to ground.

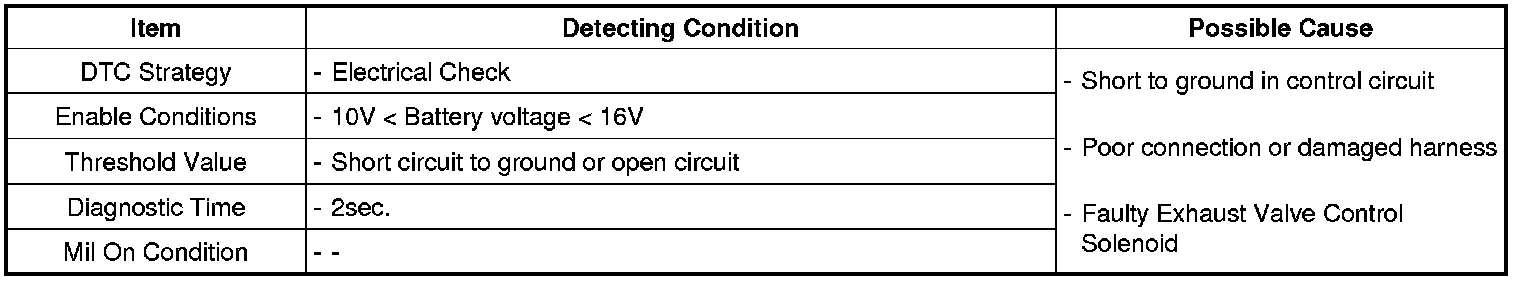

DTC Detecting Condition





Specification









Diagnostic Circuit Diagram





Signal Waveform & Data




1 Engine Speed (RPM)
2 Inlet Camshaft Position Control
3 Exhaust Camshaft Position Control
