Home >> Kia >> 2009 >> Rondo L4-2.4L >> Repair and Diagnosis >> A L L Diagnostic Trouble Codes ( DTC ) >> Testing and Inspection >> P Code Charts >> P0038 >> Component Inspection

Component Inspection





Component Inspection

1. Ignition "OFF"
2. Measure resistance between power terminal and control terminal of the sensor connector (Component side)
Specification

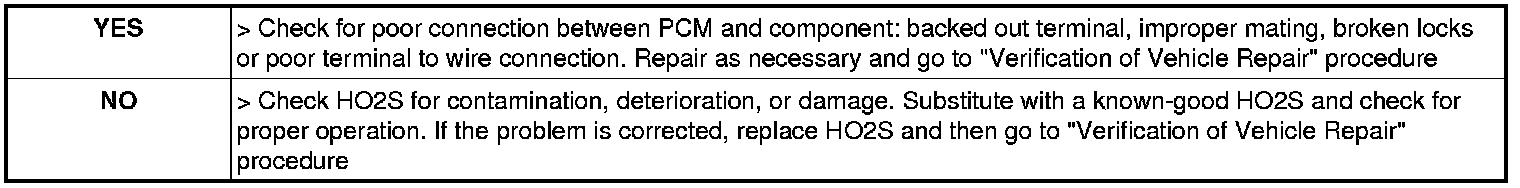

3. Is resistance within the specification?
