General Information

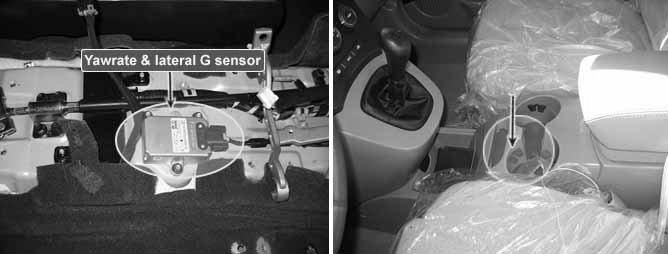

Component Location





General Description

When the vehicle is turning with respect to a vertical axis the yaw rate sensor detects the yaw rate electronically by the vibration change of plate fork inside the yaw rate sensor.
If yaw velocity reaches the specific velocity after it detects the vehicle' yawing, the ESC control is reactivated.
The later G sensor senses vehicle's lateral G. A small element inside the sensor is attached to a deflectable leverarm by later G.
Direction and magnitude of lateral G loaded to vehicle can be known with electrostatic capacity changing according to lateral G.
The output voltage of the lateral G sensor is 2.5V when the vehicle is at a standstill. Only with lateral G sensor, the ESC can not be reactivated.

DTC Description

A failure is detected if the lateral acceleration sensor or yaw rate sensor signal stays in the fault range longer than the specified failure detection time.
The Monitoring starts 1 sec after Power Up.

DTC Detecting Condition





Schematic Diagram
