Rear Door Window Motor: Service and Repair

REPLACEMENT

POWER WINDOW MOTOR REPLACEMENT
1. Remove the rear door trim.
2. Remove the rear door regulator.

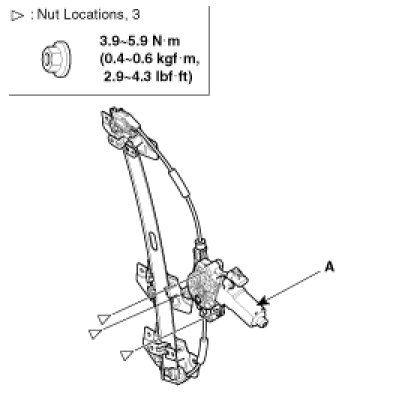

3. After loosening the power window motor mounting nuts, remove the power window motor(A).




4. Installation is the reverse of removal.

NOTE:
1) Roll the glass up down to see if it move freely without binding.
