FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM
:
Car repair manuals for everyone.
Home
>>
Kia
>>
2009
>>
Rio L4-1.6L
>>
Repair and Diagnosis
>>
Transmission and Drivetrain
>>
Manual Transmission/Transaxle
>>
Service and Repair
>>
Removal and Replacement
>>
Components and Components Location (M5CF1)
>>
Manual Transaxle System(2008.11.19 - on)
Manual Transaxle System(2008.11.19 - on)

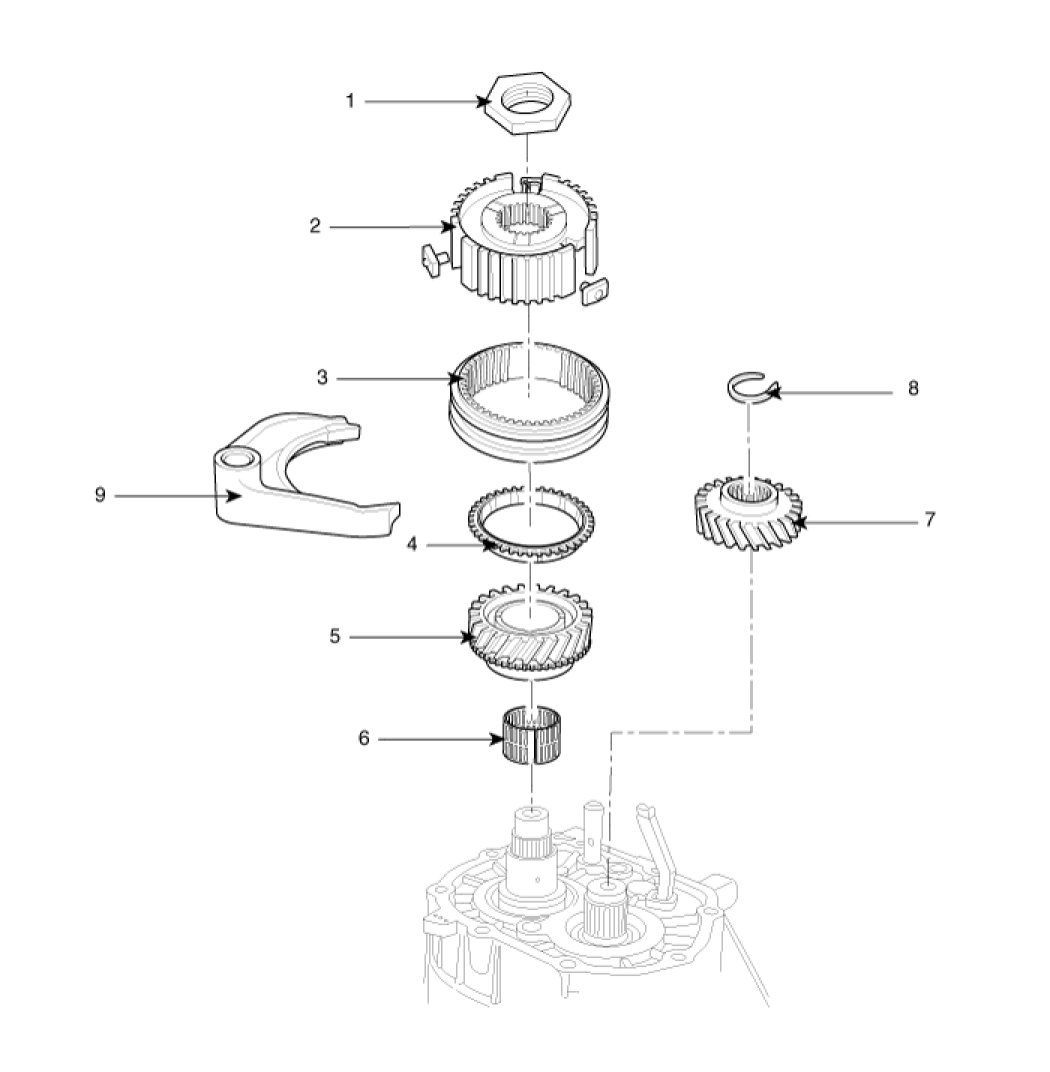

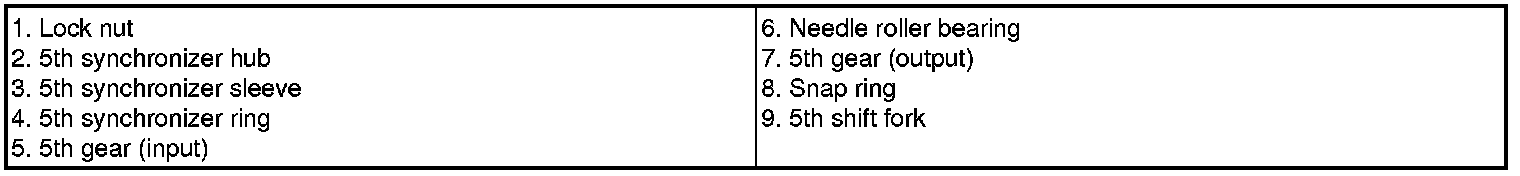

Components (1)

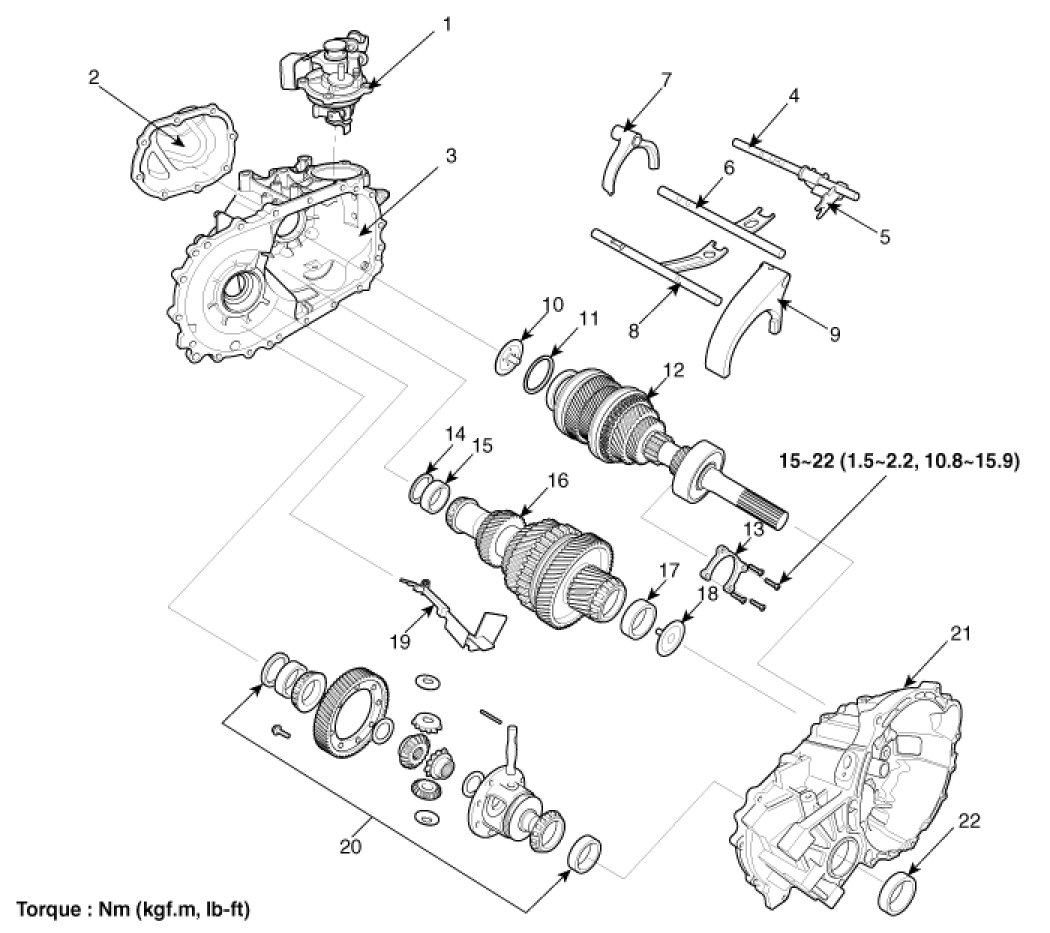

Components (2)
