Manual Transaxle System(2008.11.19 - on)

Service Adjustment Procedure

Transaxle gear oil level

Replacement
1. With the vehicle parked on a level surface, remove the drain plug.

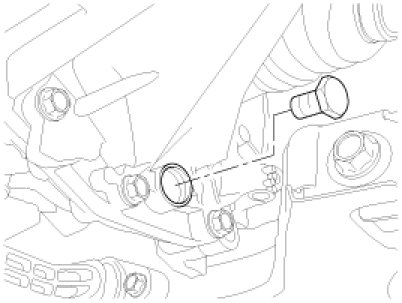

2. Drain the transaxle oil after loosening the drain plug (A).




3. Install the drain plug with new washer.

Tightening torque :
60 - 80 Nm (6.0 - 8.0 kgf.m, 43.4 - 57.8 lb-ft)


4. Add new oil through the file plug hole and, fill it just below the plug opening.

Standard oil :SAE 75W/85, API GL-4
Oil capacity :1.9l(2.0US qt, 1.67lmp qt)
